Quantum Q6 Edge HD Power Wheelchair
Heavy-duty mid-wheel drive with maximum stability and power
Overview:
Built for higher capacity and complex seating needs, with indoor manoeuvrability and rugged outdoor control.
The Quantum Q6 Edge HD Power Wheelchair is a robust mid-wheel drive option designed for strength, support and everyday versatility. With a...
Read MoreFrequently bought together
Select the add-ons you would like to purchase along with the main item above and add to cart.
Product Description

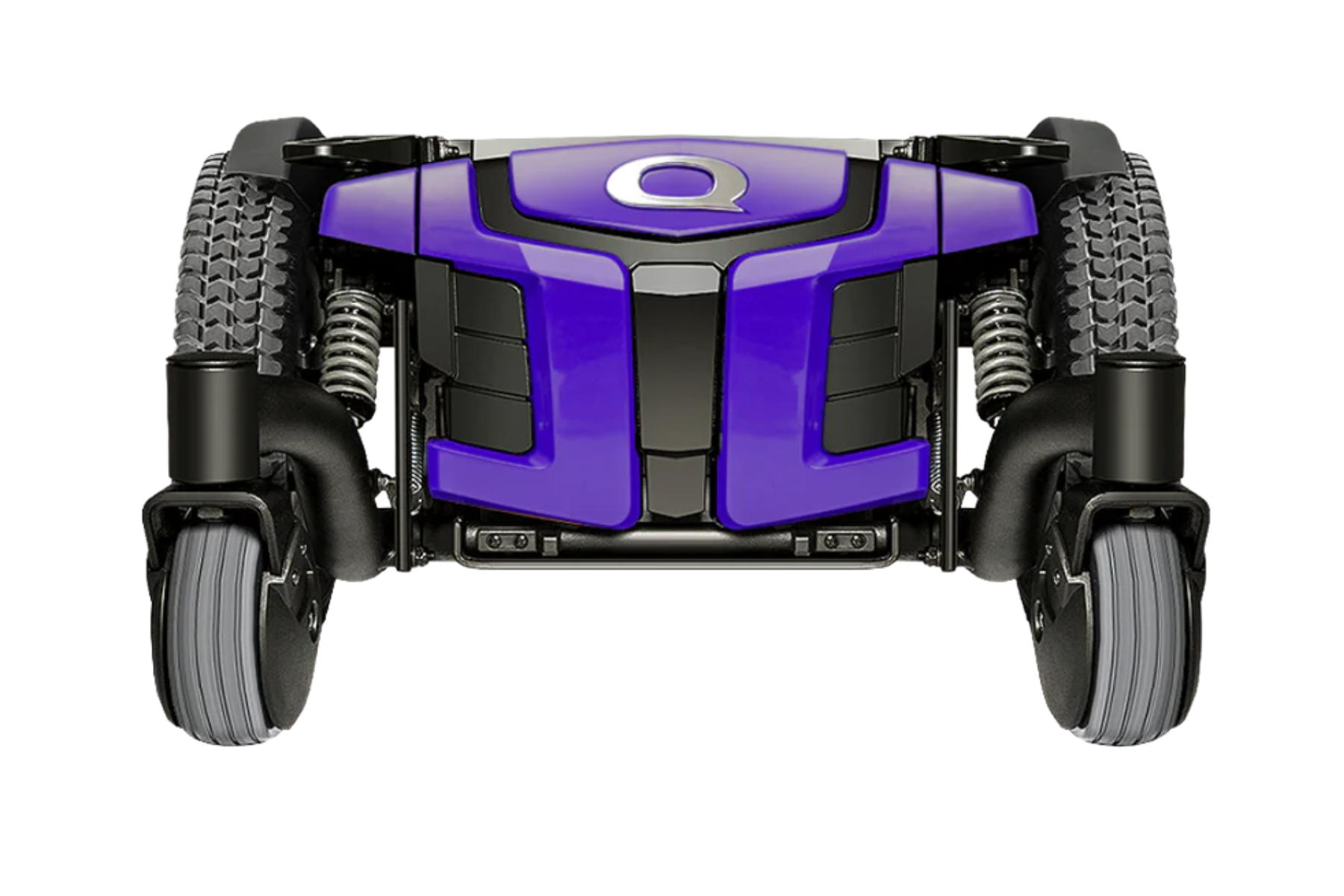

With a wide wheelbase, reinforced frame and high-torque 4-pole motors, the Quantum Q6 Edge HD Power Wheelchair is engineered for strength and control. Its mid-wheel design ensures all six wheels maintain ground contact for greater stability, while omni-castors minimise wheel hang-ups and improve performance over uneven surfaces.
The Q6 Edge HD is compatible with the TRU-Balance® 3 HD Power Positioning System, offering customisable tilt, recline and elevation options with weight capacities up to 204 kg. Optional iLevel® seat lift provides 25.4 cm (10”) of powered elevation with stability at walking speed (4.3 km/h).
Standard features include Q-Logic 3 controls, transit-compliant seating options, optional LED lighting and a wide range of colour customisations.
Who it’s for
- For clients who require a higher weight capacity, advanced positioning options and a stable power base for both indoor and outdoor use.
- For therapists prescribing complex seating configurations, powered positioning (including lift) and reliable mid-wheel drive performance with enhanced obstacle handling.
Download product fact sheet:
Key features
Description
- Mid-wheel drive with six points of ground contact – for superior traction and stability
- 204 kg safe working load – engineered for heavy-duty use
- ATX suspension with omni-castors – smooth ride with better obstacle handling
- Optional 25.4 cm (10”) iLevel® elevation – stable powered lift with functional drive speed
- TRU-Balance® 3 HD Seating System – tailored for larger body types or complex seating needs
- Advanced Q-Logic 3 electronics – intuitive control with Bluetooth connectivity
- ISO 7176-19 crash test compliant – transit-ready configurations available
Specifications
| Specification | Details |
|---|---|
| Safe Working Load (SWL) | 204 kg |
| Drive Electronics | Q-Logic 3 |
| Battery Type | MK 50 AH (x2) |
| Maximum Speed | Up to 7.6 km/h (5.6 km/h when elevated) |
| Driving Range | TBC |
| Minimum Turning Radius | 50.0 cm (19.7”) |
| Base Width | 66.5 cm (26.2”) |
| Base Length | 90.4 cm (35.6”) |
| Ground Clearance | 7.6 cm (3.0”) at battery tray |
| Seat to Floor Height | 44.5 cm – 49.5 cm (17.5” – 19.5”) |
| Seat Width | TRU-Balance® 3: 51 cm – 71 cm (20” – 28”) |
| Seat Depth | TRU-Balance® 3: 51 cm – 63.5 cm (20” – 25”) |
| Tilt Option | Available via TRU-Balance® 3 HD |
| Recline Option | Available |
| Legrest Elevation Option | Available |
| Seat Elevation Option | 25.4 cm (10”) |
| Armrest Pad Lengths | TBC |
| Backrest Heights | TBC |
| Drive Wheel | 35.5 cm (14”) pneumatic or flat free |
| Castors | Front & Rear: 15.2 cm (6”) solid omni-castors |
| Weight (Including Batteries) | 216 kg |
| Warranty | Limited lifetime (frame) 1 year electrics/motors 6 months bearings/bushings 12 months battery |
| Standards | AS/NZS 3695.2:2019 |
| ARTG Certificate | 109840 |
Note: Specifications may vary based on configuration.
