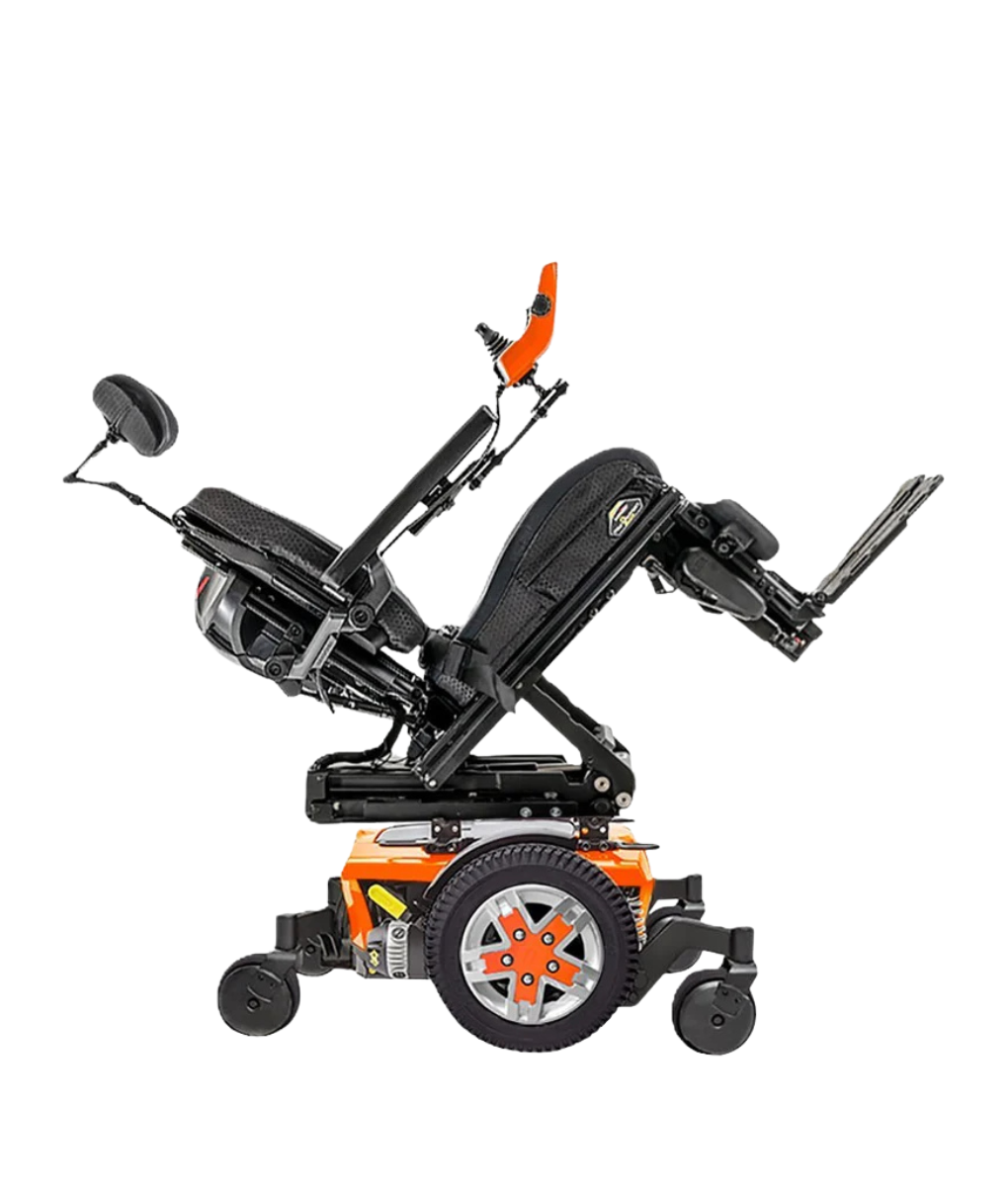

Quantum Q6 Edge 2.0 Power Wheelchair
Power and performance with mid-wheel drive stability
Overview:
Mid-wheel base with ATX suspension and optional power elevation.
The Quantum Q6 Edge 2.0 Power Wheelchair is a versatile option designed for daily performance. With high-speed motors, responsive control and optional...
Read MoreFrequently bought together
Select the add-ons you would like to purchase along with the main item above and add to cart.
Product Description
Engineered to balance comfort, control and configuration flexibility, the Quantum Q6 Edge 2.0 Power Wheelchair is built on a robust mid-wheel drive platform with ATX (Advanced Tracking & Traction) suspension. This provides exceptional control and stability across uneven surfaces and allows for spring package customisation, making it ideal for smaller individuals.
The chair supports up to 30.5 cm (12”) of optional iLevel® seat elevation, allowing the user to drive at walking speed while fully elevated. It’s compatible with a wide range of seating systems – TRU-Balance® 3, Synergy, Flex or Captain seating – and with multiple electronics platforms including Q-Logic 3 and NE+.
Optional LED lighting, drive wheel accents and a USB charger offer both function and style. All configurations are ISO crash-test approved.
Who it’s for
- For clients who want high-speed indoor/outdoor performance in a mid-wheel base.
- For clinicians and therapists configuring chairs for active users or needing customisation for smaller clients.
Download product fact sheet:
Key features
Description

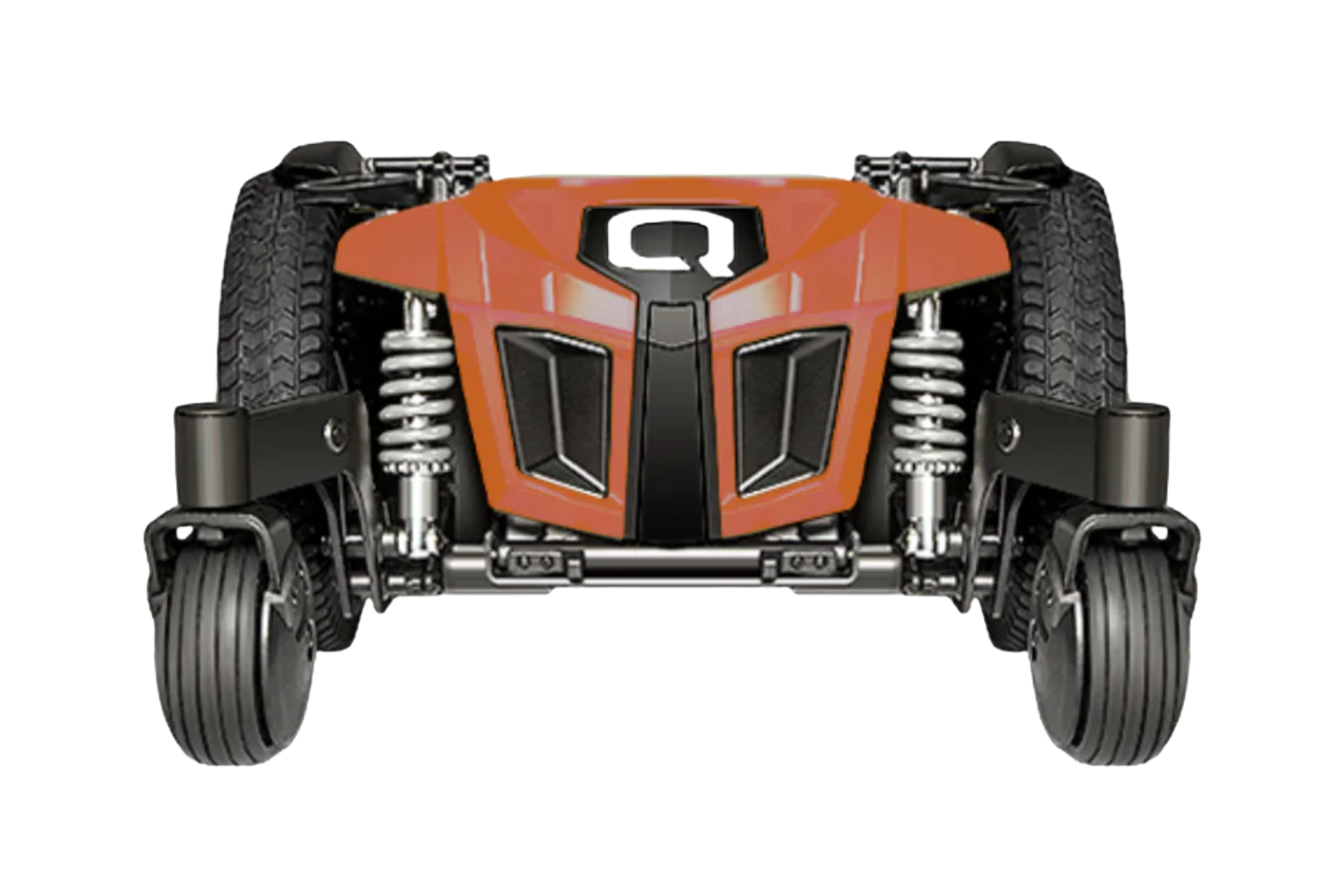

- Mid-wheel drive configuration – with ATX suspension for smooth obstacle handling
- High-speed motors – standard 10 km/h with tight turning radius
- Optional 30.5 cm (12”) iLevel® seat elevation – drive while elevated up to 5.6 km/h
- Seating versatility – compatible with TRU-Balance® 3, Flex, Synergy and Captain seating
- Control systems – Q-Logic 3, NES, NE+ and NE supported
- Optional LED lighting and USB port – visibility and device charging built-in
- Customisable spring tension – suitable for those with smaller body shapes
- Crash-test approved – for safe occupied transport
Specifications
| Safe Working Load (SWL) | 150 kg |
| Drive Electronics | Q-Logic 3, NES, NE, NE+ |
| Battery Type | MK 50 AH (x2) |
| Maximum Speed | Up to 10 km/h (5.6 km/h with iLevel®) |
| Driving Range | TBC |
| Minimum Turning Radius | 52 cm – 59 cm (20.5” – 23.2”) depending on castor size |
| Base Width | 62 cm (24.4”) |
| Base Length | 90 cm (35.5”) with 15.2 cm castors 102.6 cm (40.4”) with 20.3 cm castors |
| Ground Clearance | 6.8 cm (2.7”) at battery tray |
| Seat to Floor Height | Static seat: 42 cm – 47 cm (16.5” – 18.5”) Tilt and tilt/lift: 44 cm – 49.5 cm (17.5” – 19.5”) |
| Seat Width | Static seat: 30 cm – 56 cm (12” – 22”) Power lift and tilt: 30.5 cm – 56 cm (12” – 22”) |
| Seat Depth | Static seat: 30 cm – 56 cm (12” – 22”) Power lift and tilt: 30.5 cm – 56 cm (12” – 22”) |
| Tilt Option | Available via TRU-Balance® 3 |
| Recline Option | Available |
| Legrest Elevation Option | Available |
| Seat Elevation Option | 30.5 cm (12”) |
| Armrest Pad Lengths | TBC |
| Backrest Heights | TBC |
| Drive Wheel | 35.5 cm (14”) pneumatic or flat free |
| Castors | Front and rear: 15.2 cm (6”) solid or 20.3 cm (8”) optional |
| Weight (including batteries) | 193 kg |
| Warranty | Limited lifetime (frame), 1 year electrics/motors, 6 months bearings/bushings, 12 months battery |
| Standards | AS/NZS 3695.2:2019 |
| ARTG Certificate | 109840 |
Note: Specifications may vary based on configuration.
