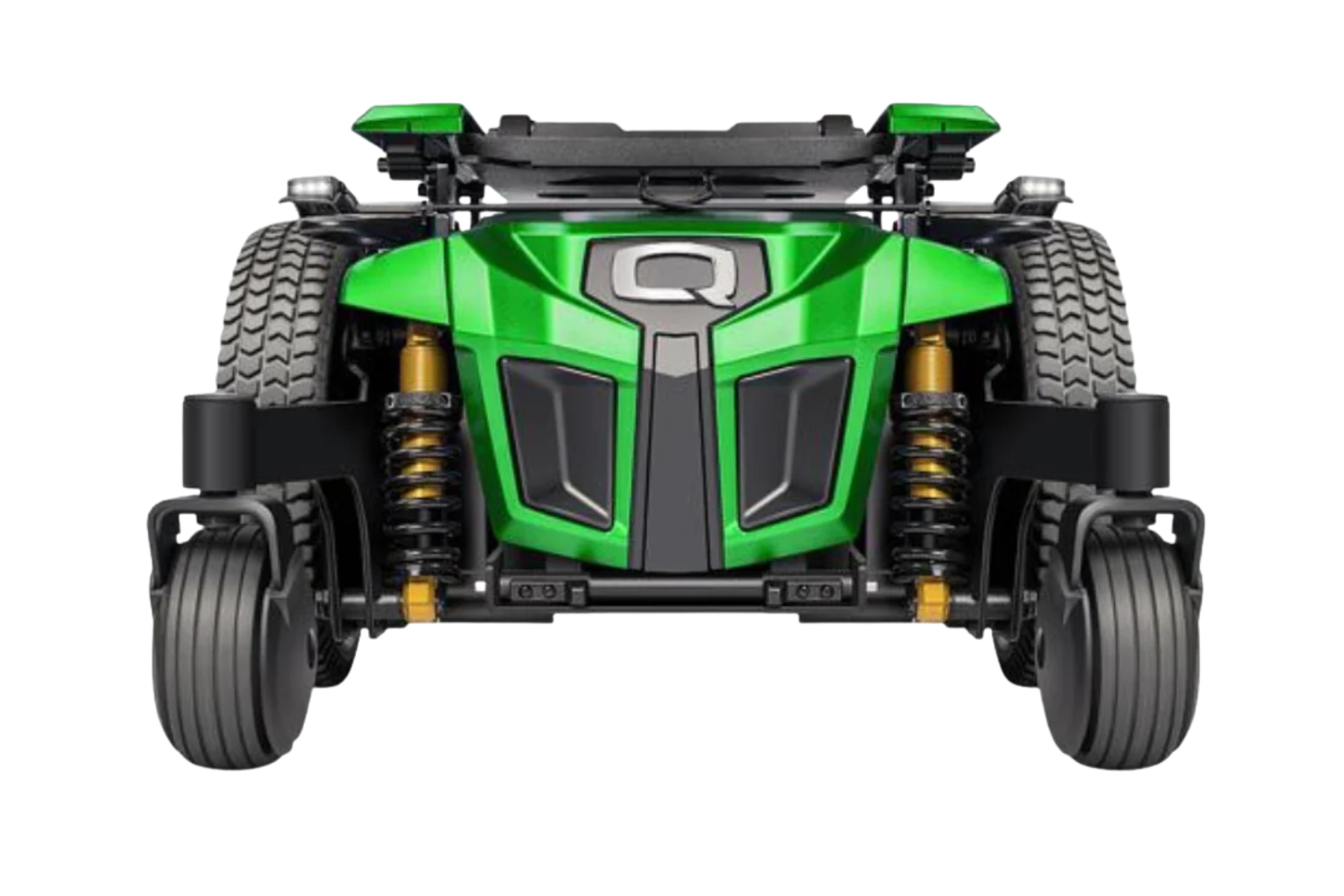

Quantum Edge 3 Power Wheelchair
Smooth performance with power elevation
Overview:
Mid-wheel chair with responsive suspension and powered seat elevation.
The Quantum Edge 3 Power Wheelchair combines advanced suspension, smooth handling and iLevel® elevation for everyday performance. With a mid-wheel drive base,...
Read MoreFrequently bought together
Select the add-ons you would like to purchase along with the main item above and add to cart.
Product Description
The Quantum Edge 3 Power Wheelchair is engineered for stability, control and performance. Its upgraded Smooth Ride Suspension (SRS) features three gas-charged shocks for improved obstacle climbing and ride comfort. With a maximum speed of 10 km/h and turning radius of just 52 cm (20.5”), it delivers responsive handling in both indoor and outdoor settings.

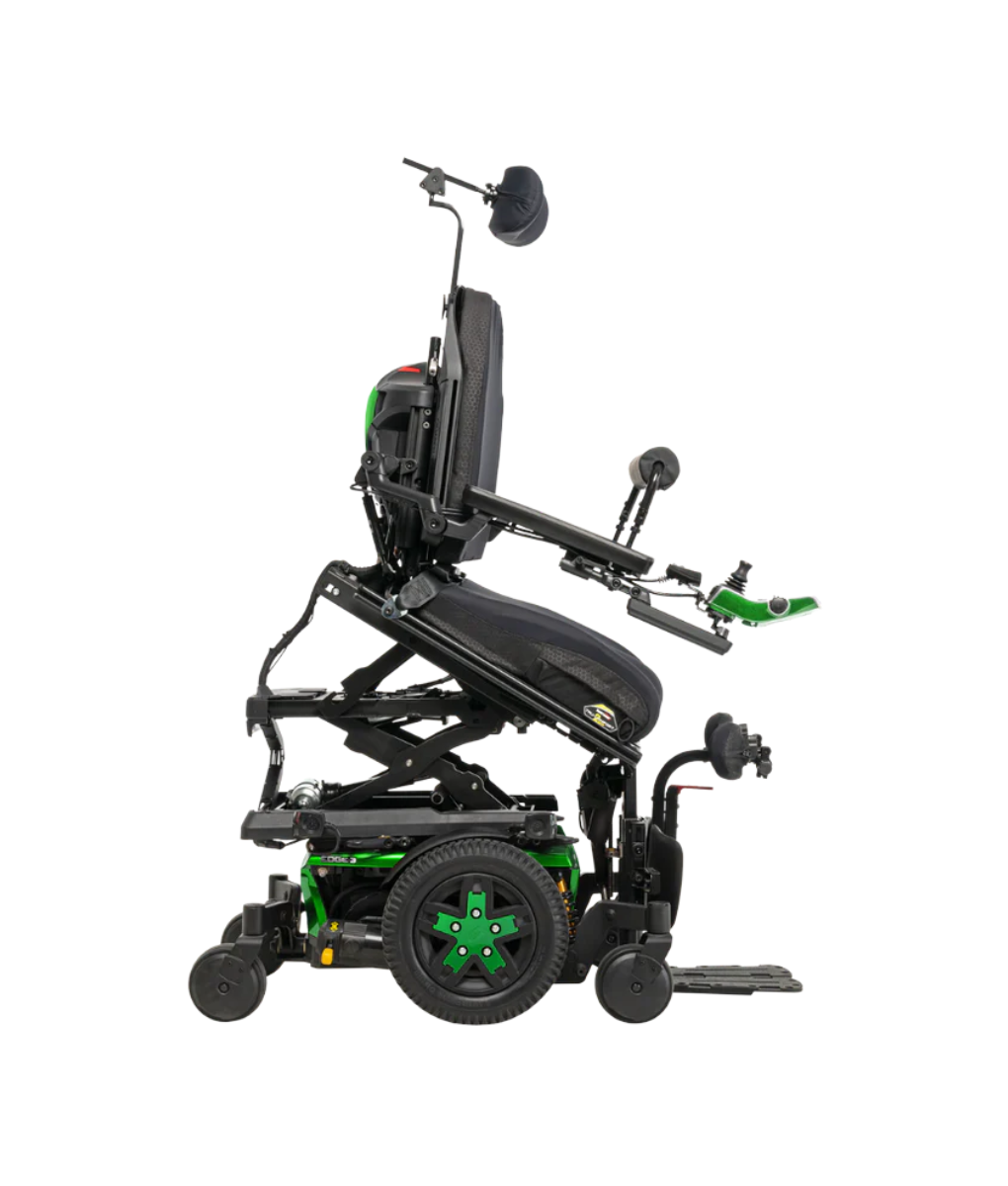

Optional 30.5 cm (12”) iLevel® elevation supports walking-speed mobility while raised, improving interaction, reach and access during daily activities. The chair is compatible with TRU-Balance® 3 or 4 seating, including tilt, recline and articulating legrest functions.
Standard features include front and rear LED lighting, a USB charging port and drive wheel accent colours. The Edge 3 is also available with optional Accu-Trac® for improved straight-line tracking.
Who it’s for
- For clients who require mid-wheel drive stability with smooth suspension and seat elevation.
- For therapists scripting seating functions and electronic controls to support access, reach and comfort in daily mobility.
Download product fact sheet:
Key features
Description
- Mid-wheel drive configuration – with a 52 cm (20.5”) turning radius for indoor manoeuvrability
- SRS (Smooth Ride Suspension) – three gas-charged shocks for a smoother ride
- Optional 30.5 cm (12”) iLevel® seat elevation – enables eye-level interaction while driving at 7.2 km/h
- TRU-Balance® 3 and 4 seating – support tilt, recline, anterior tilt and legrest adjustment
- Q-Logic 3, NES and NE+ control options – for standard or alternative drive access
- LED lighting and USB port – improve visibility and power personal devices
- Drive wheel accents – standard on all configurations
- Crash-test approved – for use with occupied transit kits
Specifications
| Safe Working Load (SWL) | 136 kg |
| Drive Electronics | 120 A Q-Logic 3, NES or NE+ |
| Battery Type | MK 50 AH (x2) |
| Maximum Speed | Up to 10 km/h (7.24 km/h with iLevel®) |
| Driving Range | TBC |
| Minimum Turning Radius | 52 cm (20.5”) |
| Base Width | 61.9 cm (24.4”) |
| Base Length | 90 cm (35.5”) without front riggings |
| Ground Clearance | 6.8 cm (2.7”) at battery tray |
| Seat to Floor Height | Static seat: 41.9 cm – 47 cm (16.5” – 18.5”) Power tilt: 44.5 cm – 49.5 cm (17.5” – 19.5”) Lift and tilt: 44.5 cm – 49.5 cm (17.5” – 19.5”) |
| Seat Width | Static seat: 25.4 cm – 55.9 cm (10” – 22”) Power tilt and tilt/lift: 30.5 cm – 55.9 cm (12” – 22”) |
| Seat Depth | Static seat: 25.4 cm – 55.9 cm (10” – 22”) Power tilt and tilt/lift: 30.5 cm – 55.9 cm (12” – 22”) |
| Tilt Option | TRU-Balance® 3 or 4 Tilt – included |
| Recline Option | Available via TRU-Balance® systems |
| Legrest Elevation Option | Available via articulating foot platform |
| Seat Elevation Option | 30.5 cm (12”) |
| Armrest Pad Lengths | TBC |
| Backrest Heights | TBC |
| Drive Wheel | 35.5 cm (14”) pneumatic or flat free tyres |
| Castors | Front and rear: 15.2 cm (6”) solid |
| Weight (including batteries) | 193 kg |
| Warranty | Limited lifetime (frame), 1 year electrics/motors, 6 months bearings/bushings, 12 months battery |
| Standards | AS/NZS 3695.2:2019 |
| ARTG Certificate | 109840 |
Note: Specifications may vary based on configuration.
