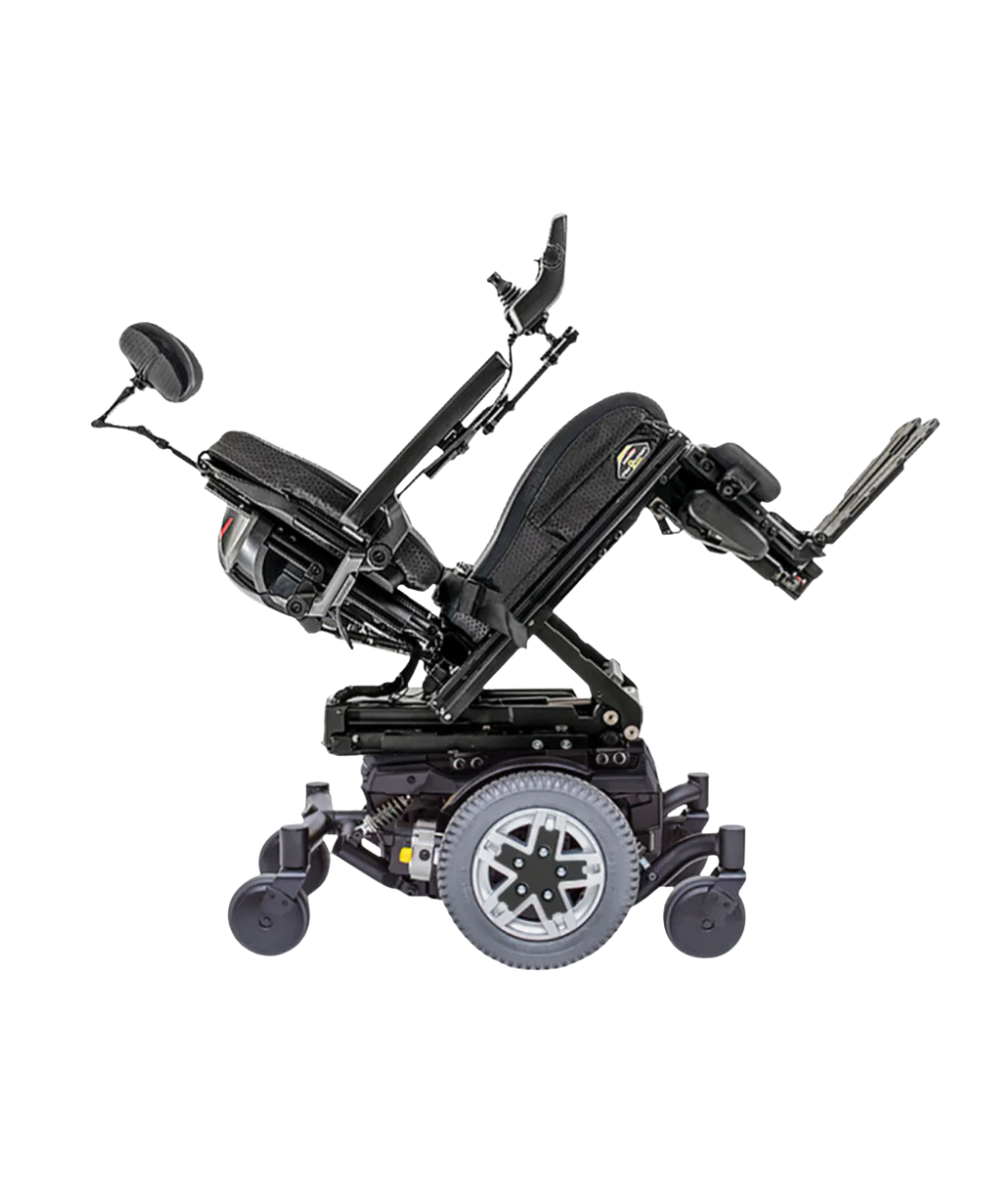

Quantum Q6 Edge Z Power Wheelchair
High torque mid wheel drive for outdoor control
Overview:
Designed for powerful performance, stability and confident outdoor mobility.
The Quantum Q6 Edge Z Power Wheelchair is a robust mid‑wheel drive chair built for high torque and dependable outdoor performance. With...
Read MoreFrequently bought together
Select the add-ons you would like to purchase along with the main item above and add to cart.
Product Description
The Quantum Q6 Edge Z Power Wheelchair is engineered for individuals who require strong drive performance and enhanced stability, particularly when navigating outdoor or uneven terrain. Its mid-wheel design keeps all six wheels in contact with the ground, improving traction and balance during driving and obstacle negotiation.
Low-impact omni-castors at the front and rear reduce wheel hang-ups, while ATX (ActiveTrac® with extra stability) suspension enhances ride comfort and control over varied surfaces. Powerful 4-pole motors provide high torque for climbing and sustained outdoor use.
The Edge Z is compatible with a wide range of advanced seating and electronics options. Optional iLevel® technology provides up to 30.5 cm (12”) of powered seat elevation, allowing driving at walking speed to support access, interaction and daily tasks.
Who it’s for
- For clients who need a powerful, stable mid‑wheel drive chair for outdoor use, uneven terrain and higher performance demands.
- For therapists prescribing a wheelchair requiring higher torque, strong suspension and compatibility with complex seating and electronics.
Download product fact sheet:
Key features
Description
- Mid-wheel design – keeps six wheels on the ground for maximum stability
- ATX suspension with extra stability – improves control and comfort over varied terrain
- Low-impact omni-castors – reduce hang-ups at thresholds and obstacles
- Powerful 4-pole motors – deliver strong torque and climbing performance
- Optional 30.5 cm (12”) iLevel® seat elevation – enables safe driving at walking speed while elevated
- Wide base design – enhances stability for outdoor and uneven environments
- Compatible with advanced seating systems – supports complex postural needs
Specifications
| Specification | Details |
|---|---|
| Safe Working Load (SWL) | 160 kg |
| Drive Electronics | Q-Logic 3 |
| Battery Type | MK 70 AH (x2) |
| Maximum Speed | Up to 10 km/h (5.6 km/h with iLevel®) |
| Driving Range | TBC |
| Minimum Turning Radius | 50.0 cm (20”) |
| Base Width | 66.5 cm (26”) |
| Base Length | 90.4 cm (36”) |
| Ground Clearance | 7.6 cm (3”) at battery tray |
| Seat to Floor Height | Power tilt: 46 cm – 51 cm (18.1” – 20.1”) Lift and tilt: 49 cm – 54 cm (19.3” – 21.3”) |
| Seat Width | With power functions: 30.5 cm – 61 cm (12” – 24”) |
| Seat Depth | With power functions: 35.5 cm – 61 cm (14” – 24”) |
| Tilt Option | Available via compatible seating systems |
| Recline Option | Available |
| Legrest Elevation Option | Available |
| Seat Elevation Option | 30.5 cm (12”) |
| Armrest Pad Lengths | TBC |
| Backrest Heights | TBC |
| Drive Wheel | 35.5 cm (14”) pneumatic or flat free |
| Castors | Front: 15.2 cm (6”) solid Rear: 15.2 cm (6”) solid |
| Weight (Including Batteries) | 200 kg |
| Warranty | Limited lifetime (frame) 1 year electrics/motors 6 months bearings/bushings 12 months battery |
| Standards | AS/NZS 3695.2:2019 |
| ARTG Certificate | 109840 |
Note: Specifications may vary based on configuration.
