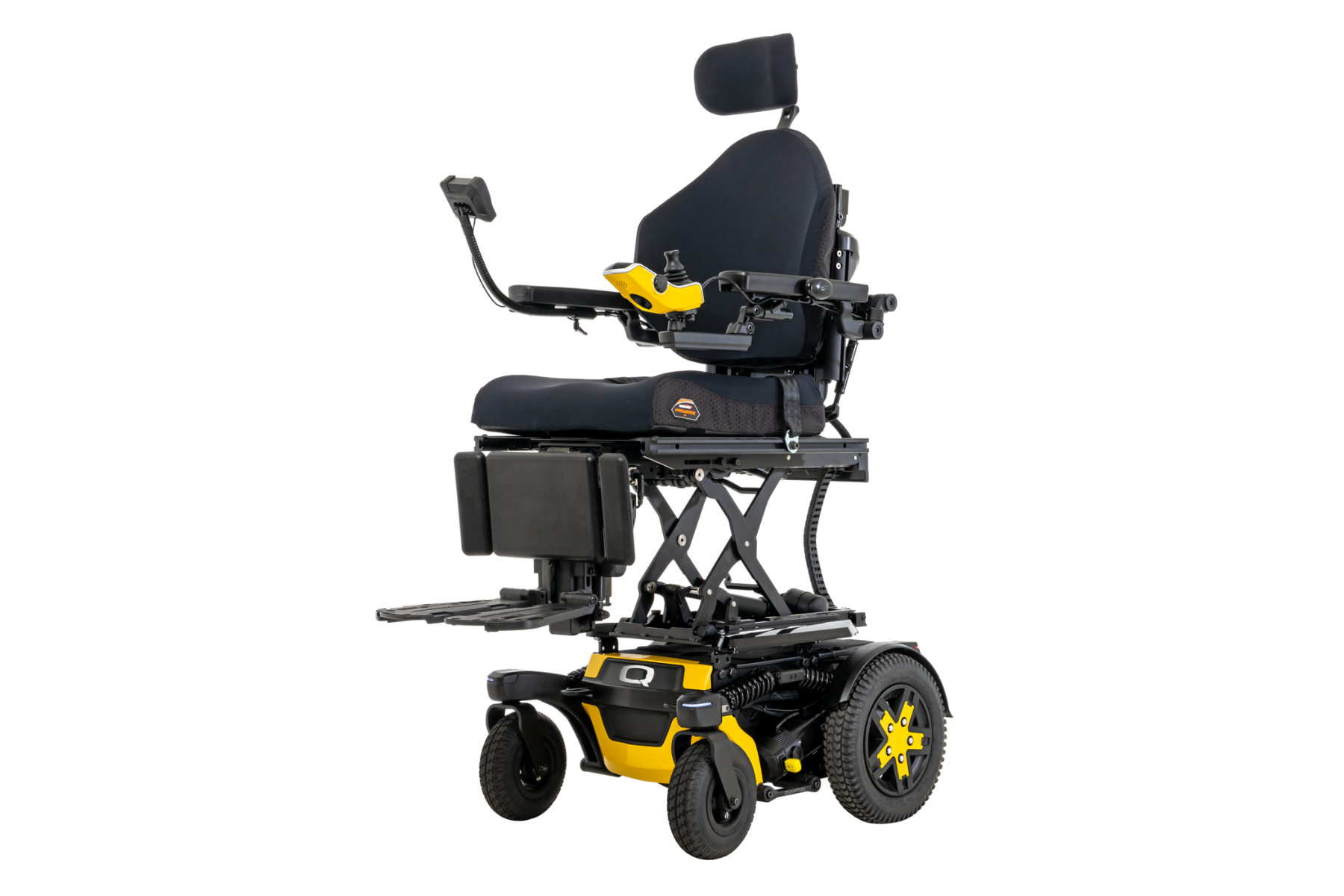

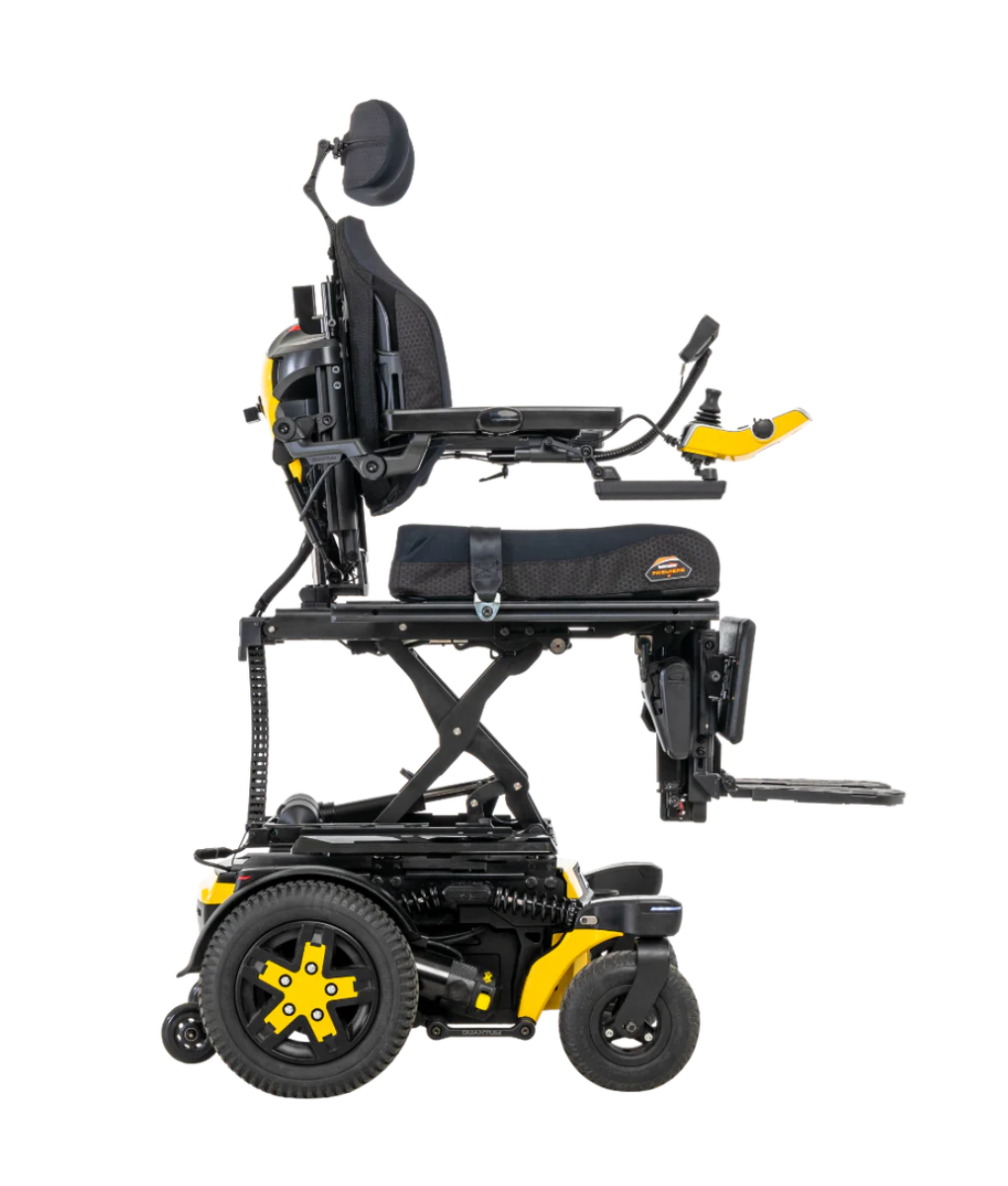

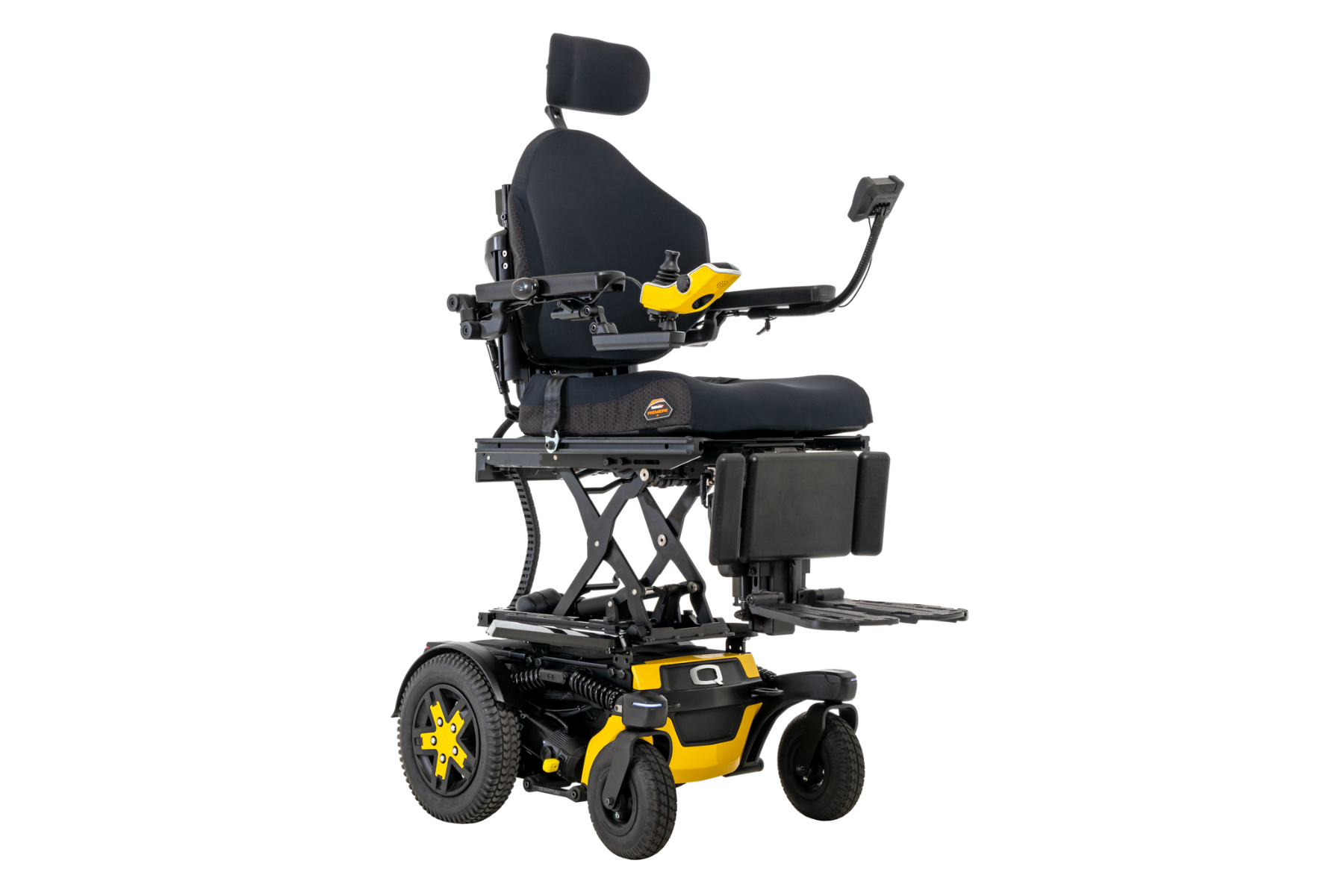

Quantum R-TRAK Power Wheelchair
Rear-wheel drive with advanced comfort
Overview:
Smooth ride suspension with compact handling and elevated driving performance.
The Quantum R-TRAK Power Wheelchair delivers a rear-wheel drive experience with all-wheel suspension, enhanced stability and comfortable obstacle transitions. With a compact...
Read MoreFrequently bought together
Select the add-ons you would like to purchase along with the main item above and add to cart.
Product Description
The Quantum R-TRAK Power Wheelchair is a high-performance rear-wheel drive option engineered for smooth handling, confidence and stability. Designed to maximise comfort over varied terrain, the R-TRAK features all-wheel independent Smooth Ride Suspension (SRS), a stable centre of gravity and advanced shock absorption to manage everyday bumps and uneven surfaces.
The chair’s narrow 61.4 cm (24.2”) base supports better access in tighter environments, while its top speed of up to 10 km/h ensures responsive driving. The optional 25.4 cm (10”) seat elevation enables powered height access while maintaining safe driving speeds up to 5.6 km/h.
Standard features include LED lighting, drive wheel colour accents and a USB charger. Electronics options include the Q-Logic 3 system and NE+ controller, both compatible with accessories such as the Quantum® Backup Camera. Seating options include TRU-Balance® 3 power positioning, Captain seating or the TRU-Balance® Flex static system.
The R-TRAK is available in 14 distinctive colour finishes.
Who it’s for
- For clients who prefer rear-wheel drive with improved obstacle handling and elevation functionality.
- For therapists prescribing powered mobility with advanced seating and electronics for indoor-outdoor use.
Download product fact sheet:
Key features
Description
- Rear-wheel drive performance – with 4-pole motors and responsive handling

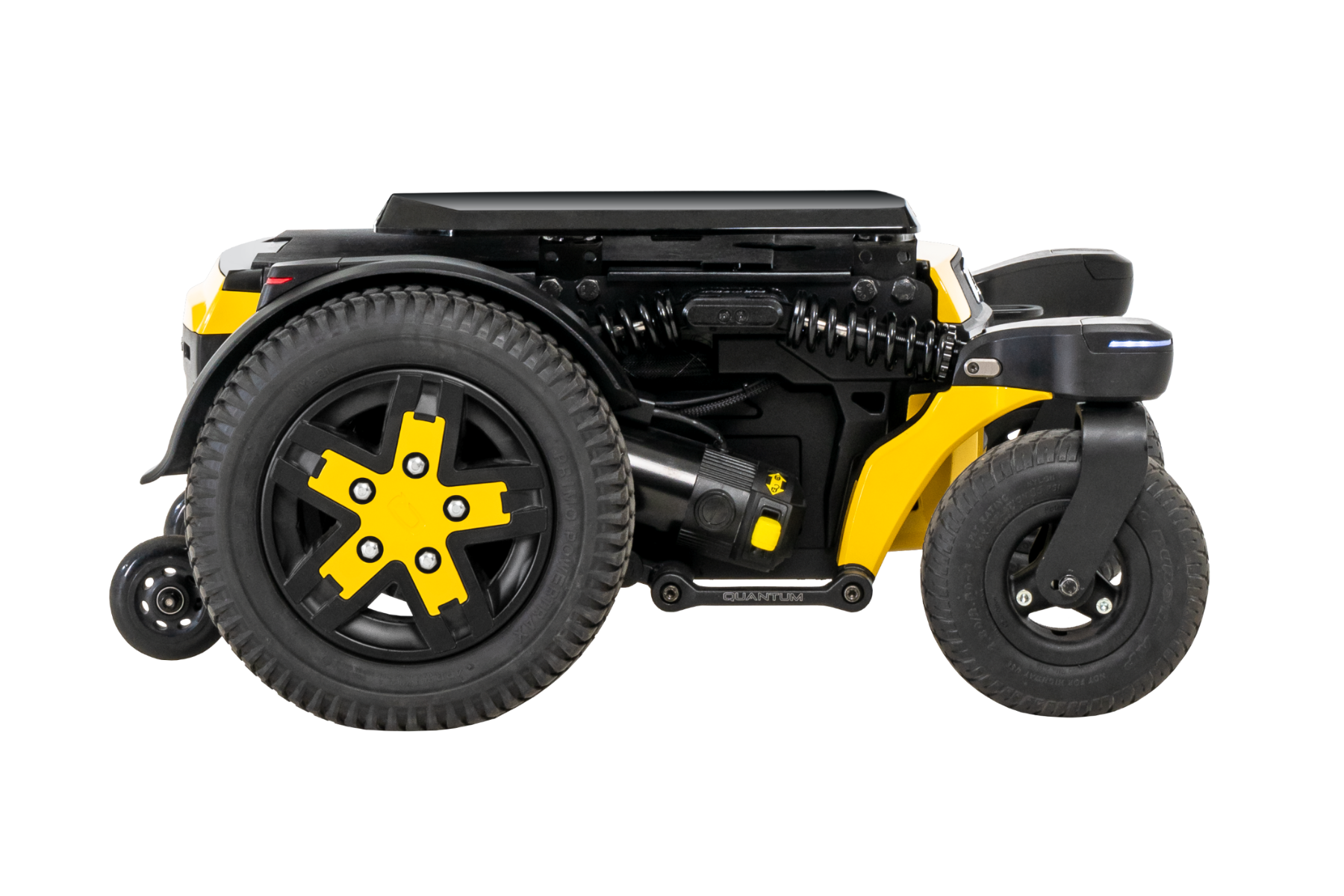

- SRS suspension – all-wheel shock absorption smooths out terrain transitions
- Compact 61.4 cm (24.2”) base – improves manoeuvrability in indoor settings
- Optional 25.4 cm (10”) seat elevation – allows elevated driving at 5.6 km/h
- Q-Logic 3 or NE+ electronics – expandable and compatible with alternative drive controls
- TRU-Balance® 3 seating systems – support tilt, recline and elevation functions
- LED lighting and USB charger – enhance visibility and day-to-day functionality
- Available in 14 colours – includes classic and bold colour options
Specifications
| Safe Working Load (SWL) | 150 kg |
| Drive Electronics | 120 A Q-Logic 3 or NE+ |
| Battery Type | MK 70 AH (x2) |
| Maximum Speed | Up to 10 km/h (5.6 km/h with elevation) |
| Driving Range | TBC |
| Minimum Turning Radius | 65.2 cm (25.7”) |
| Base Width | 61.4 cm (24.2”) |
| Base Length | 88.3 cm (34.8”) |
| Ground Clearance | 10 cm (3.97”) at battery tray |
| Seat to Floor Height | 44.5 cm – 49.5 cm (17.5” – 19.5”) |
| Seat Width | 30.5 cm – 55.8 cm (12” – 22”) |
| Seat Depth | 30.5 cm – 55.8 cm (12” – 22”) |
| Tilt Option | TRU-Balance® 3 Tilt – included |
| Recline Option | Available via TRU-Balance® 3 systems |
| Legrest Elevation Option | Available via TRU-Balance® 3 |
| Seat Elevation Option | 25.4 cm (10”) |
| Armrest Pad Lengths | TBC |
| Backrest Heights | TBC |
| Drive Wheel | 35.6 cm (14”) pneumatic or solid tyres (14×4” wide) |
| Castors | Front: 22.8 cm (9”) solid or pneumatic |
| Weight (including batteries) | 216 kg |
| Warranty | Limited lifetime (frame), 1 year electrics/motors, 6 months bearings/bushings, 12 months battery |
| Standards | AS/NZS 3695.2:2019 |
| ARTG Certificate | 109840 |
Note: Specifications may vary based on configuration.
