Quantum 4Front2 Power Wheelchair
Front wheel drive with traction and control
Overview:
Engineered for confident handling and smooth performance, indoors and outdoors.
The Quantum 4Front 2 Power Wheelchair is a high-capability front wheel drive solution that delivers excellent traction, stable handling and advanced shock...
Read MoreFrequently bought together
Select the add-ons you would like to purchase along with the main item above and add to cart.
Product Description

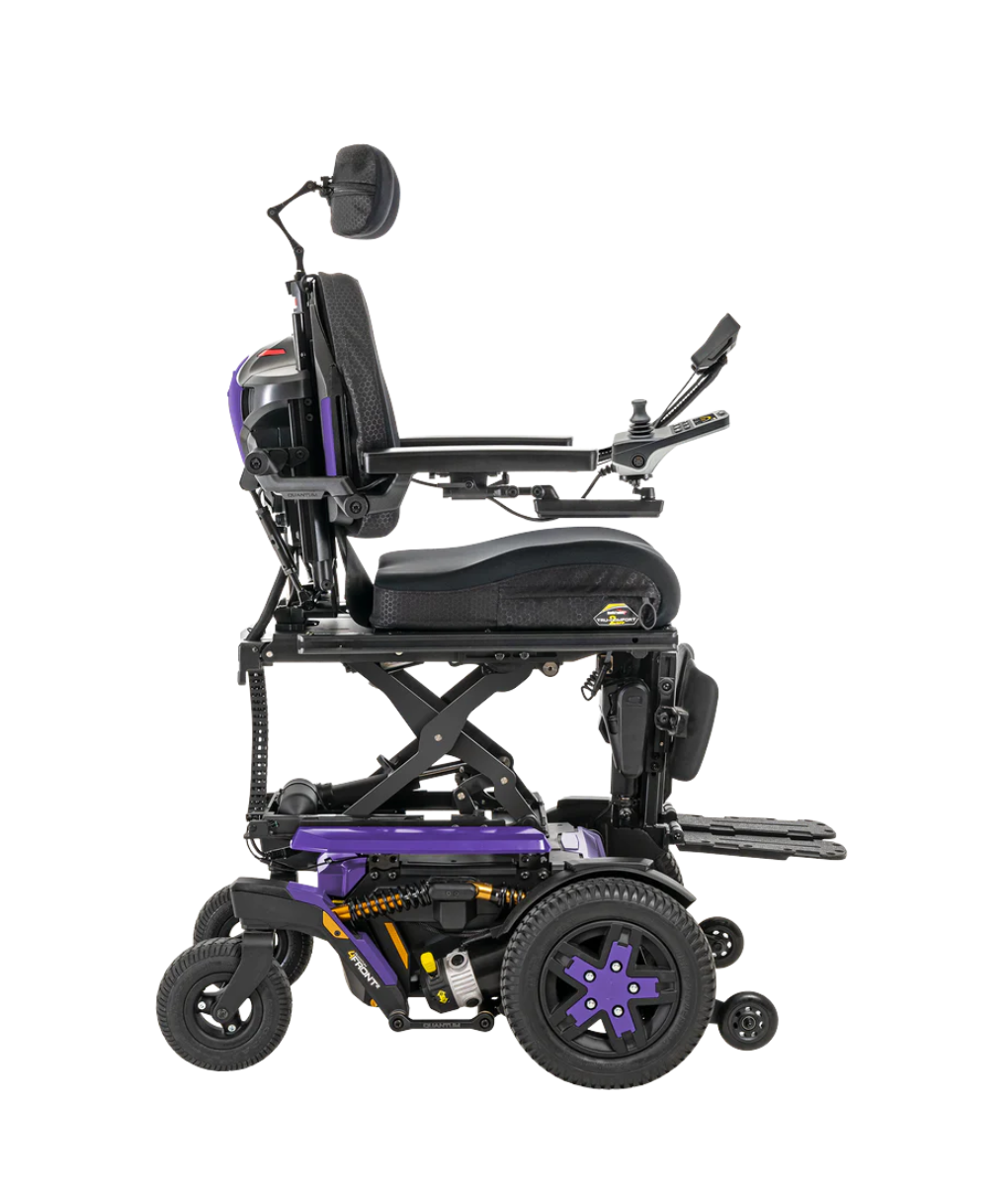

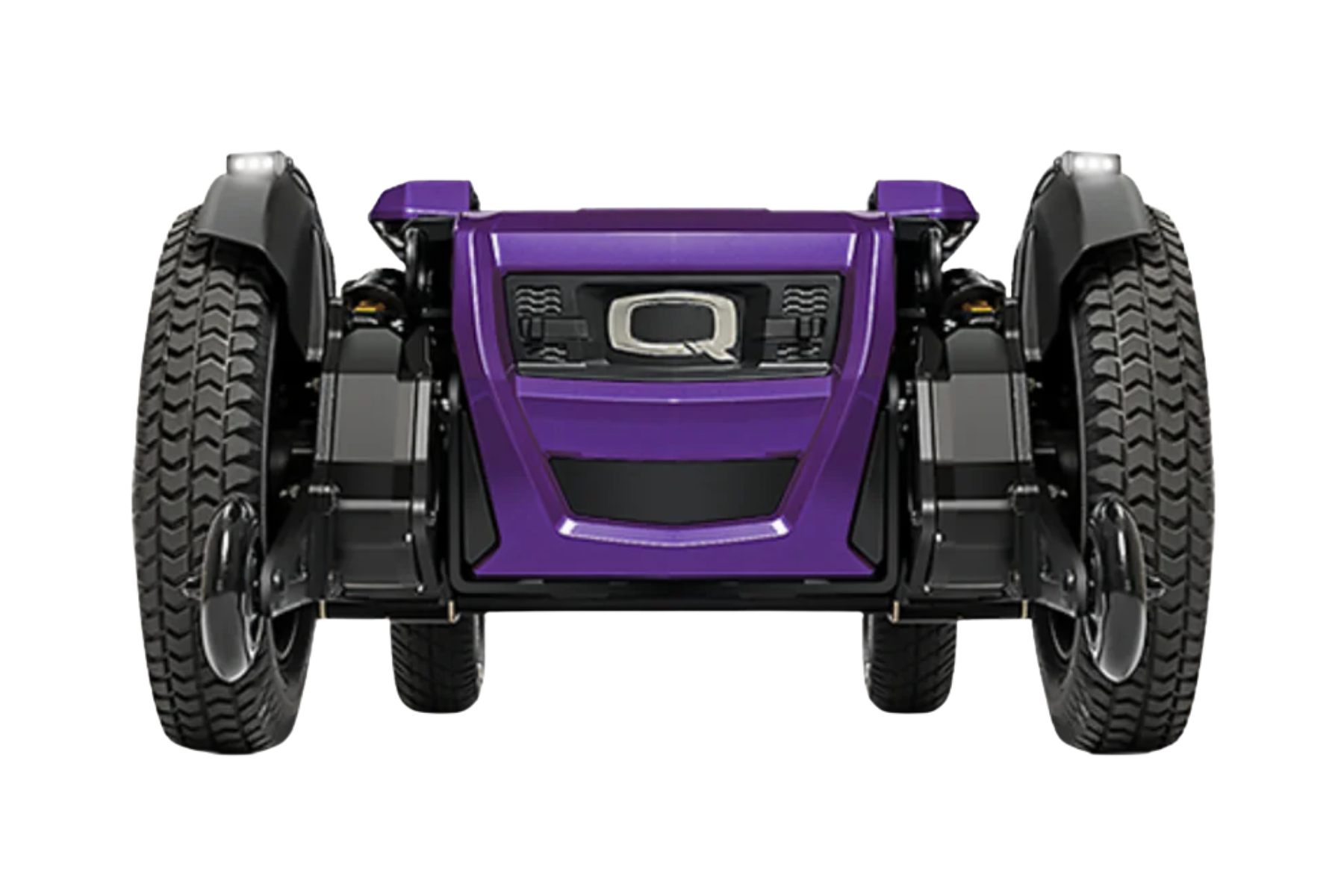

The Quantum 4Front 2 Power Wheelchair combines front-wheel drive performance with refined control and obstacle negotiation. Powerful 4-pole motors and Smart Traction Control (STC) deliver confident handling and improved performance over uneven terrain and around tight corners. The enhanced Smooth Ride Suspension (SRS) system with coil-over shocks adds stability and ride comfort across everyday environments.
Compatible with a wide range of seating and electronics, the 4Front 2 supports TRU‑Balance® 3 and 4 Power Positioning, contoured seating, TRU-Balance® Flex static seating and more. Optional iLevel® seat elevation offers up to 25.4 cm (10”) of powered height adjustment with safe driving at up to 5.6 km/h.
Standard LED front and rear lights improve visibility and a USB charger adds everyday convenience. Colour-accented drive wheels complement the base’s bold aesthetics.
Who it’s for
- For clients needing front‑wheel drive traction, control and obstacle negotiating performance.
- For therapists scripting advanced seating options and power elevation for complex mobility needs.
Download product fact sheet:
Key features
Description
- Front-wheel drive design – for confident traction and strong climbing ability
- Smart Traction Control (STC) – enhances grip and performance on variable terrain
- SRS (Smooth Ride Suspension) – superior shock absorption and stability
- Optional 25.4 cm (10”) iLevel® elevation – power‑adjustable seat lift with stable driving speed
- Q-Logic 3 controls – adaptable and customisable drive system
- LED lighting package – front and rear for improved visibility
- USB charger included – powers mobile devices on the move
- Compatible with extensive seating systems – from TRU-Balance® to contoured seating
Specifications
| Specification | Details |
|---|---|
| Safe Working Load (SWL) | 136 kg |
| Drive Electronics | Q-Logic 3 |
| Battery Type | MK 50 AH (x2) |
| Maximum Speed | Up to 10 km/h (5.6 km/h when elevated) |
| Driving Range | TBC |
| Minimum Turning Radius | 65.7 cm (26”) |
| Base Width | 60.9 cm (24”) |
| Base Length | 101 cm (40”) |
| Ground Clearance | 7.6 cm (3”) at battery tray |
| Seat to Floor Height | Static seat: 38.7 cm – 43.8 cm (15.25” – 17.25”) Power tilt: 44.5 cm – 49.5 cm (17.5” – 19.5”) Lift and tilt: 45 cm – 50 cm (17.75” – 19.75”) |
| Seat Width | 30.5 cm – 55.8 cm (12” – 22”) |
| Seat Depth | 30.5 cm – 55.8 cm (12” – 22”) |
| Tilt Option | Available via TRU-Balance® 3 or 4 |
| Recline Option | Available via TRU-Balance® systems |
| Legrest Elevation Option | Available |
| Seat Elevation Option | 25.4 cm (10”) |
| Armrest Pad Lengths | TBC |
| Backrest Heights | TBC |
| Drive Wheel | 35.5 cm (14”) pneumatic or flat free |
| Castors | Rear: 22.8 cm (9”) solid |
| Weight (Including Batteries) | 202 kg |
| Warranty | Limited lifetime (frame) 1 year electrics/motors 6 months bearings/bushings 12 months battery |
| Standards | AS/NZS 3695.2:2019 |
| ARTG Certificate | 109840 |
Note: Specifications may vary based on configuration.
