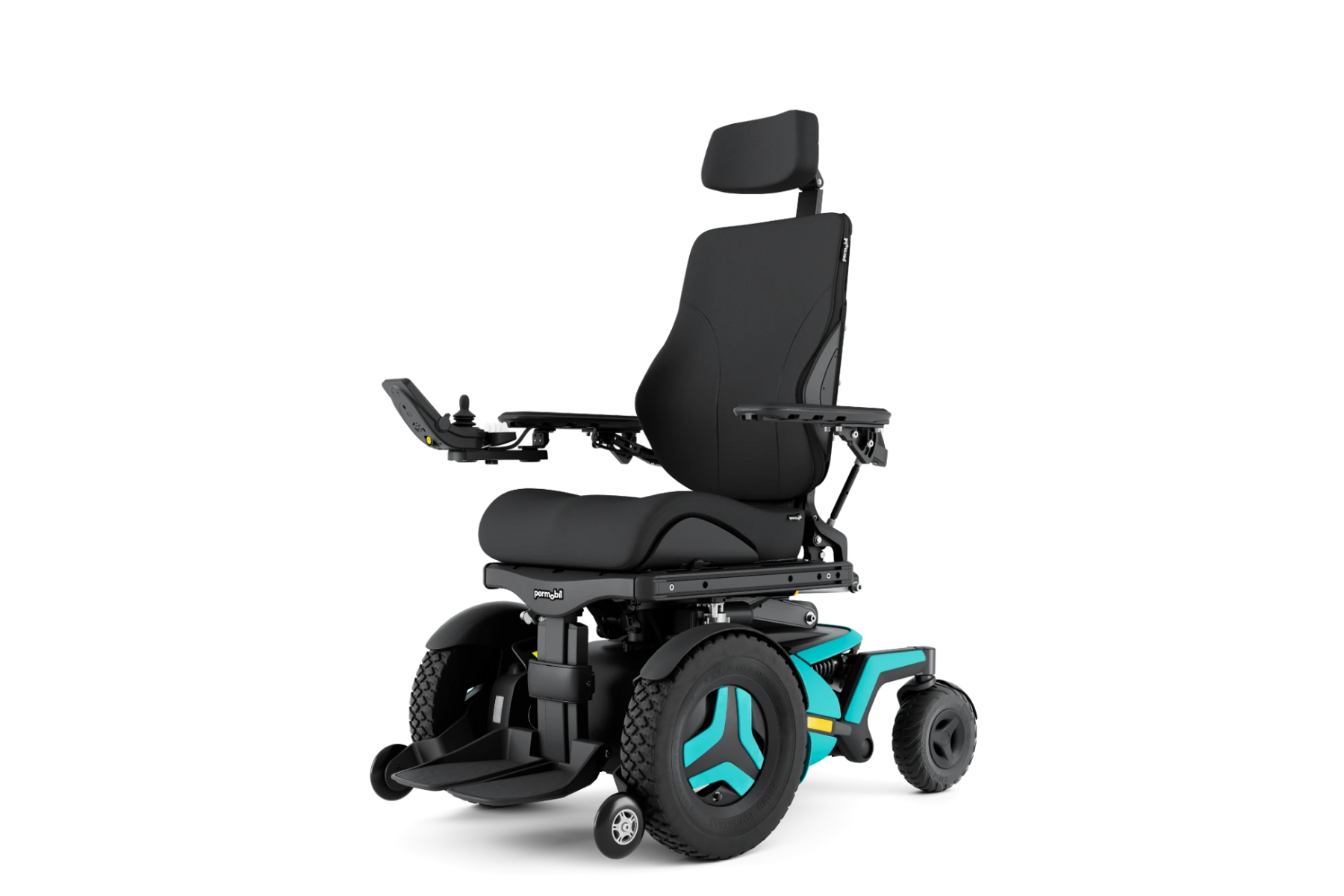

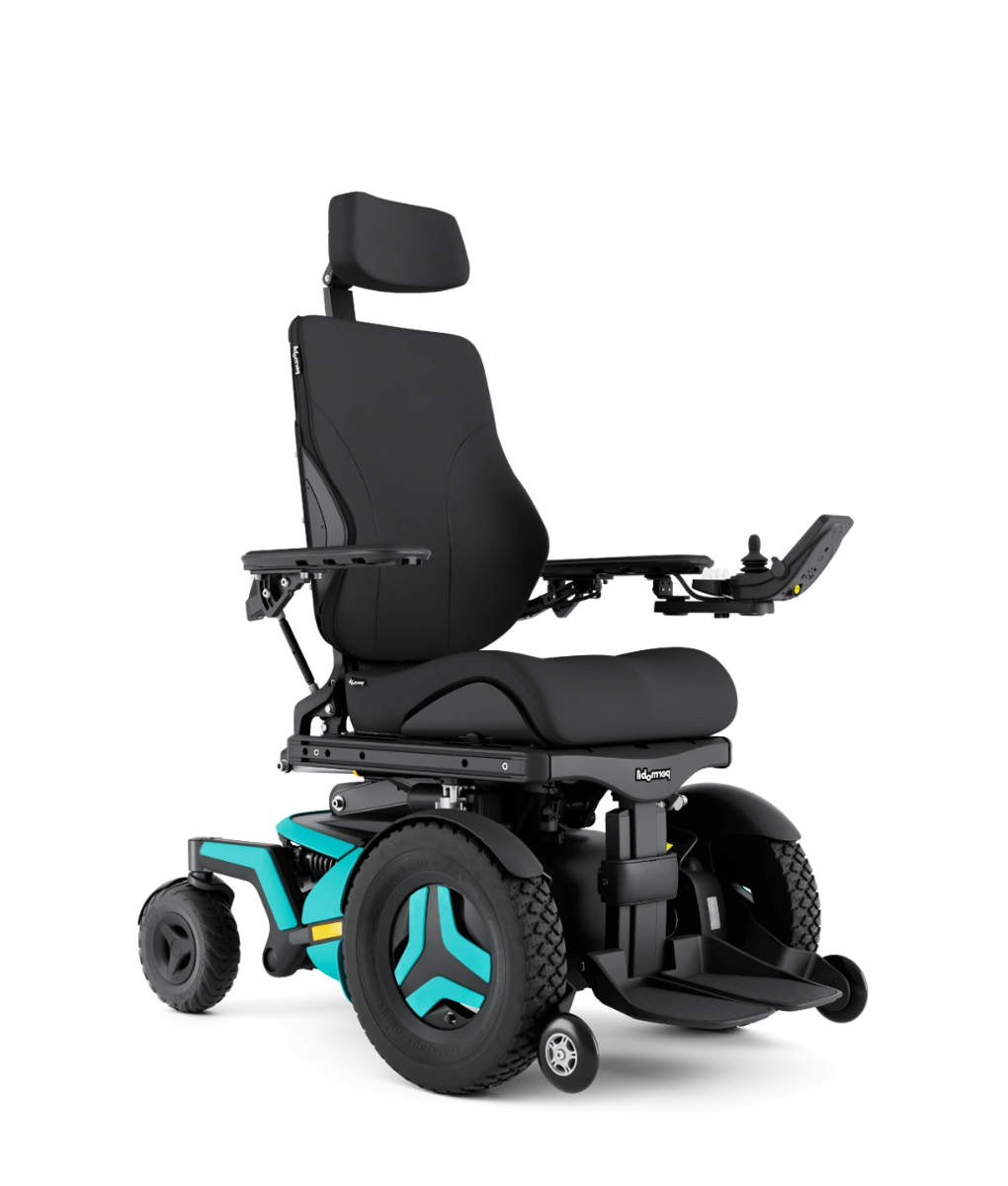

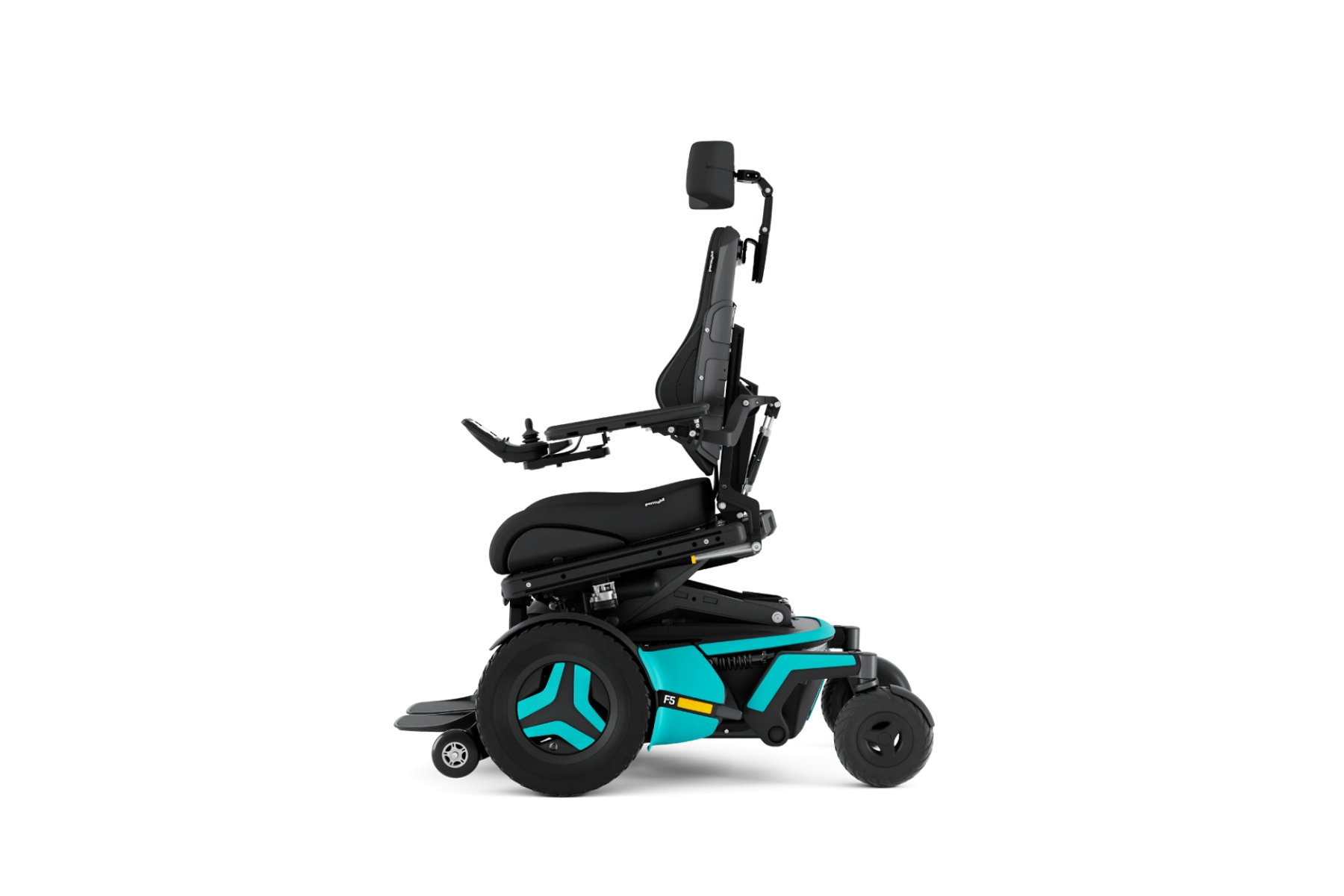

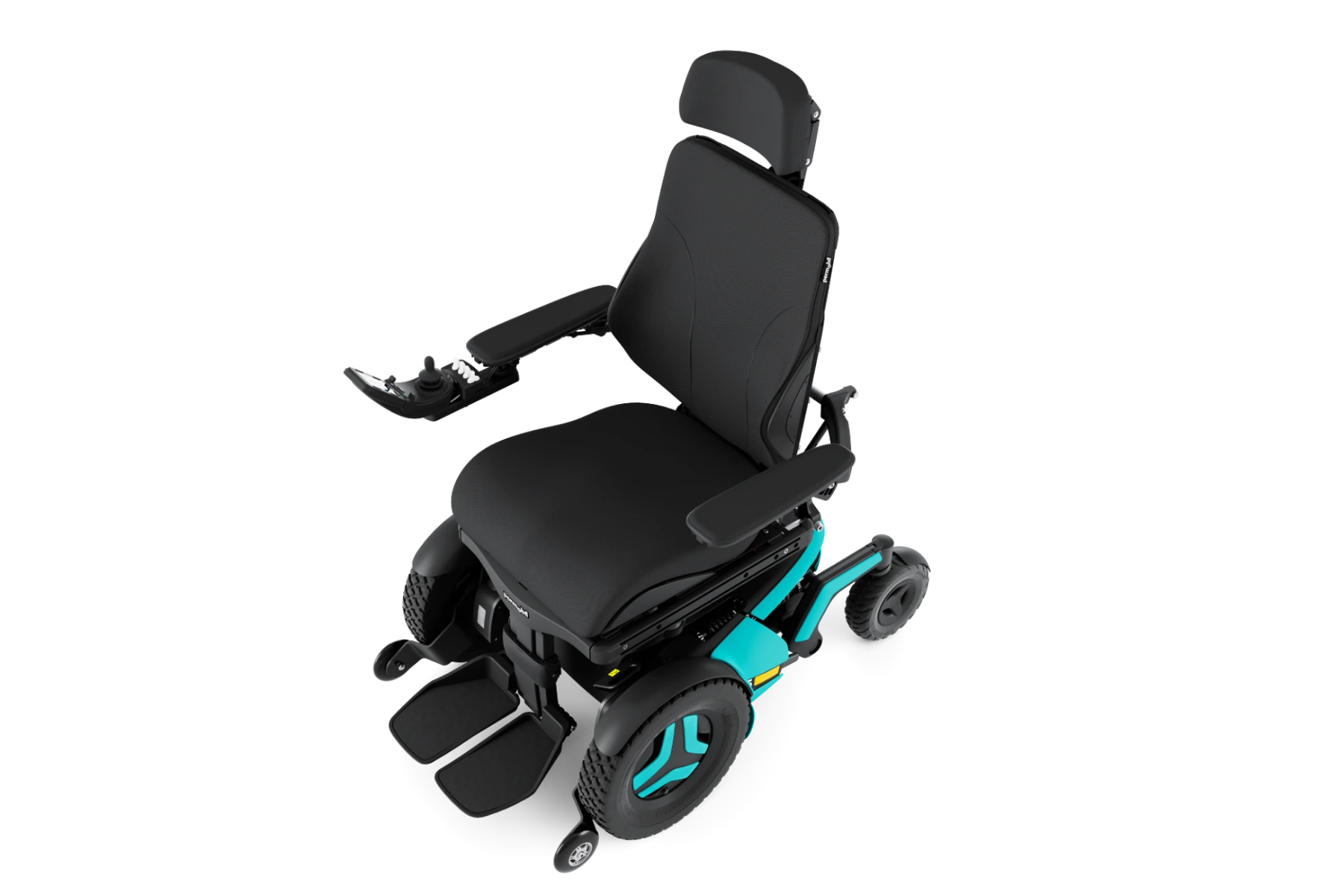

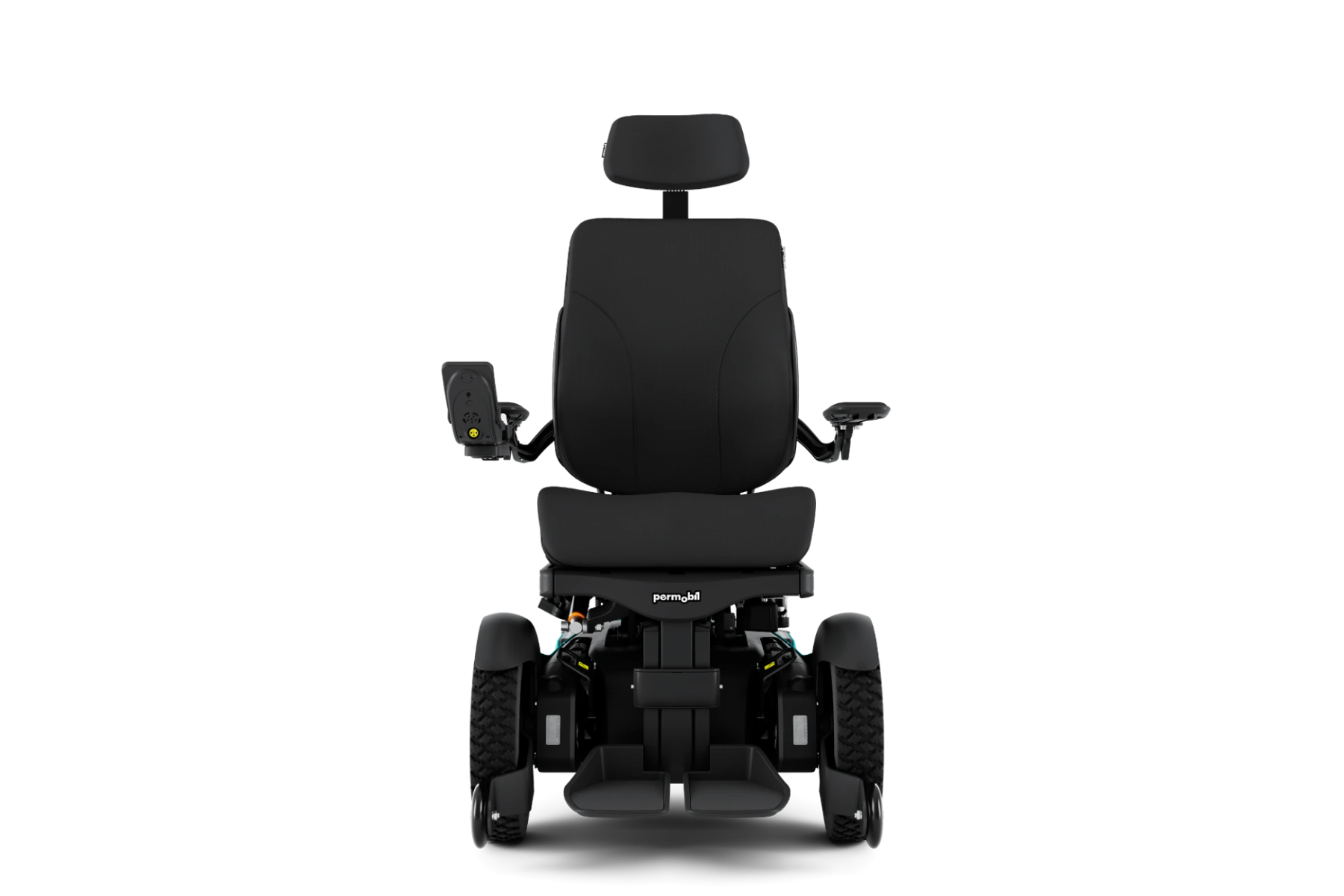

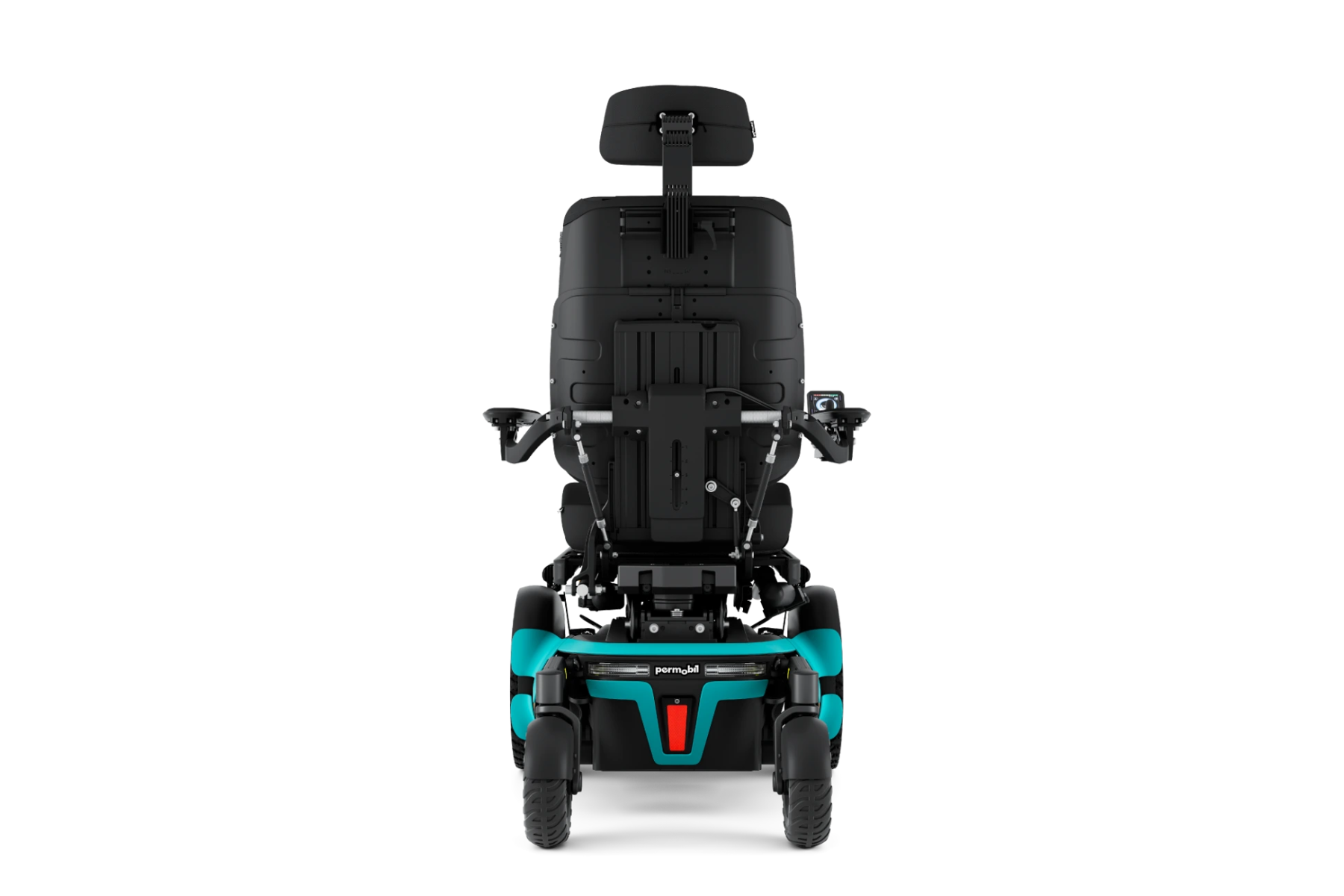

Permobil F5 Corpus Power Wheelchair
Front-wheel drive with precision comfort
Overview:
Powerful suspension and ergonomic support for confident, everyday performance.
The Permobil F5 Corpus Power Wheelchair is a front-wheel drive option and offers exceptional torque, stability and seating customisation. Designed for everyday...
Read MoreFrequently bought together
Select the add-ons you would like to purchase along with the main item above and add to cart.
Product Description
The Permobil F5 Corpus Power Wheelchair is engineered to deliver strong outdoor performance with advanced suspension and responsive seating. With a top speed of 10 km/h and ComfortRide Pro all-wheel suspension, the F5 reduces vibration and enhances control across variable terrain.

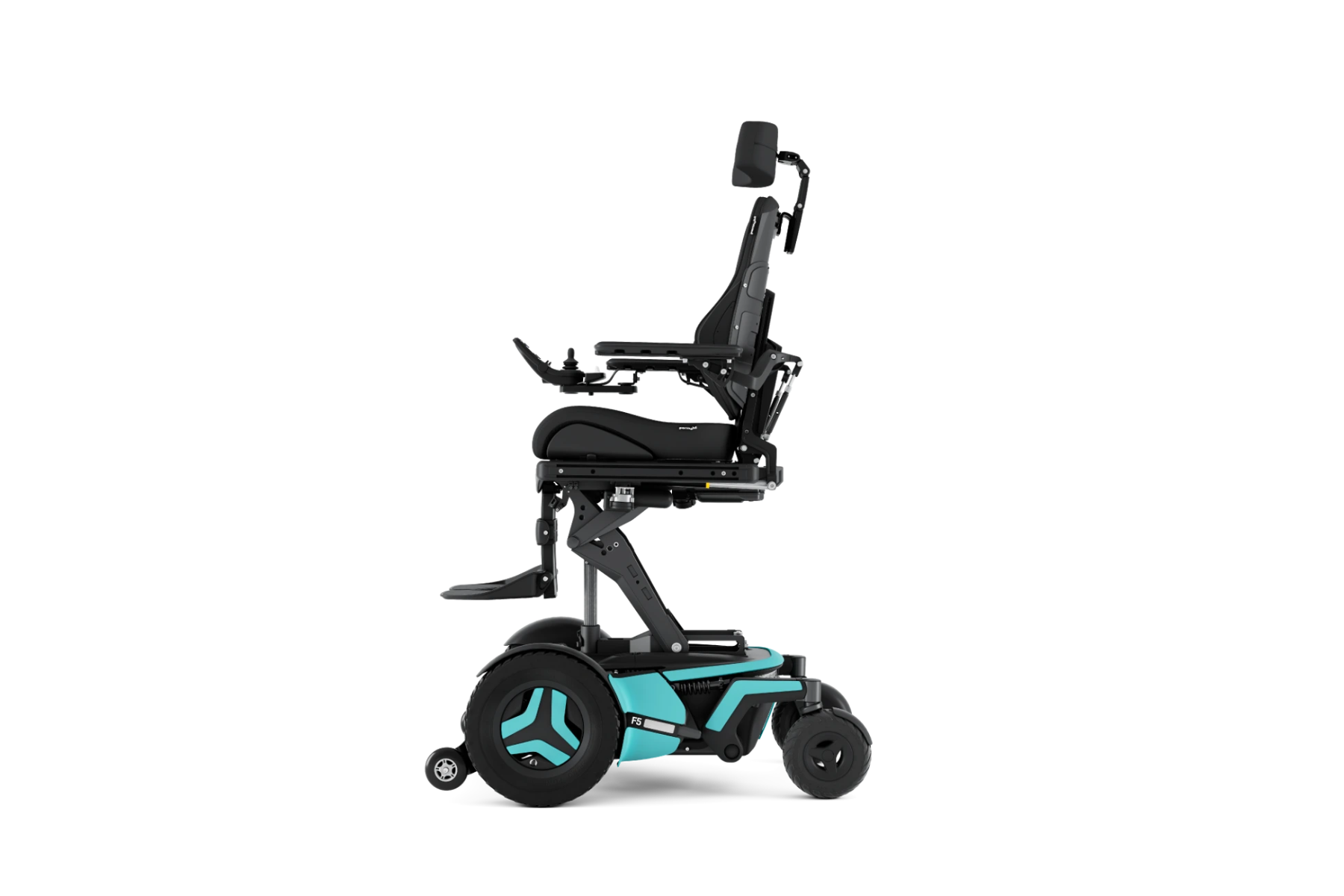

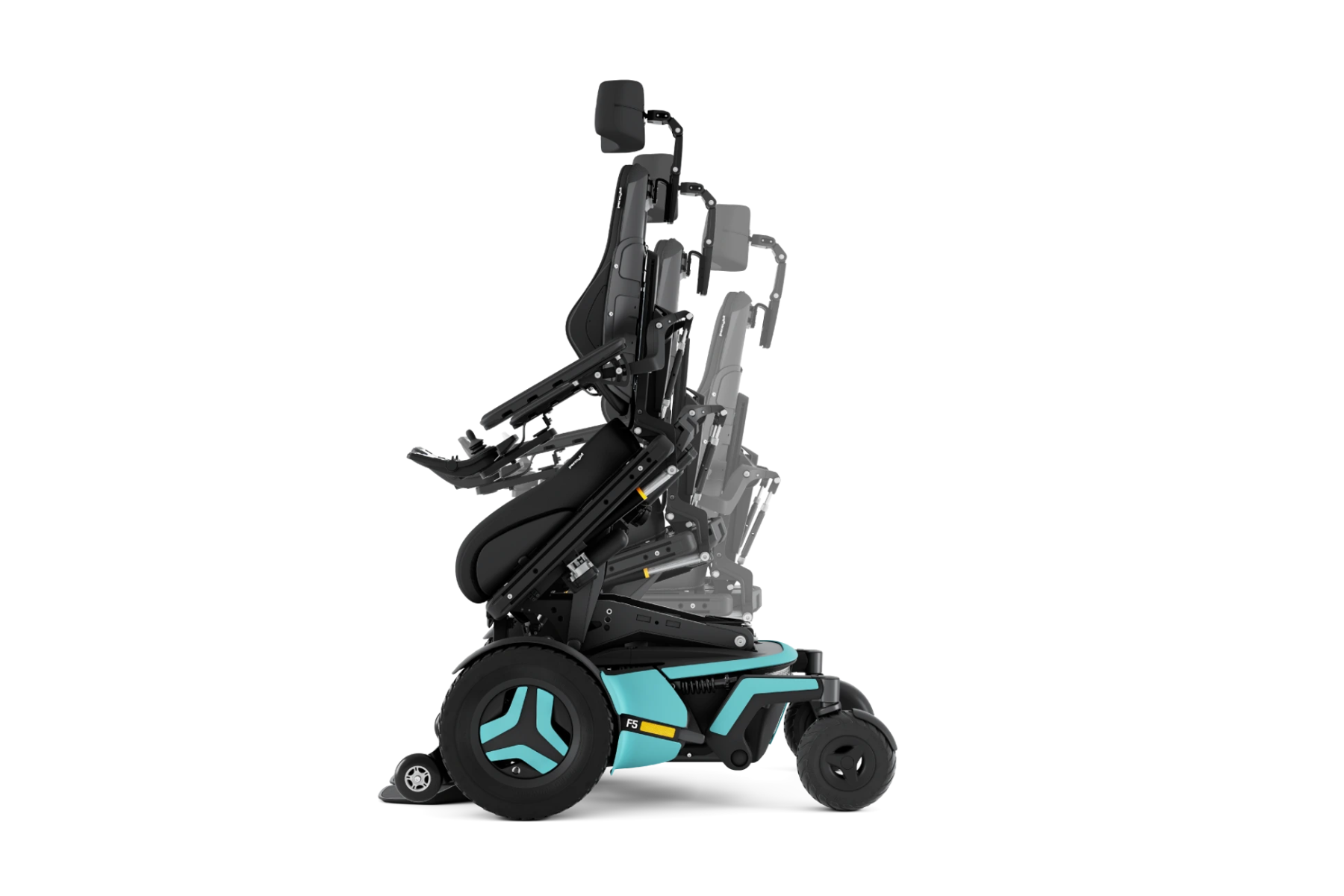

Each drive wheel features oil-dampened shocks and fully independent adjustment. The F5 supports obstacle climbing and forward tilt up to 45° using ActiveReach – all while maintaining smooth movement and traction. ActiveHeight supports seat elevation up to 35.6 cm (14”), even while driving at speeds up to 5.1 km/h.
The Corpus® seating system has been updated with dual-density foam, a pelvic well insert and Stretch-Air covers for improved pressure relief, comfort and hygiene. Seat depth and width are indexed for future-proof adaptability. The Ergo backrest has a tapered aluminium shell that promotes upper body function.

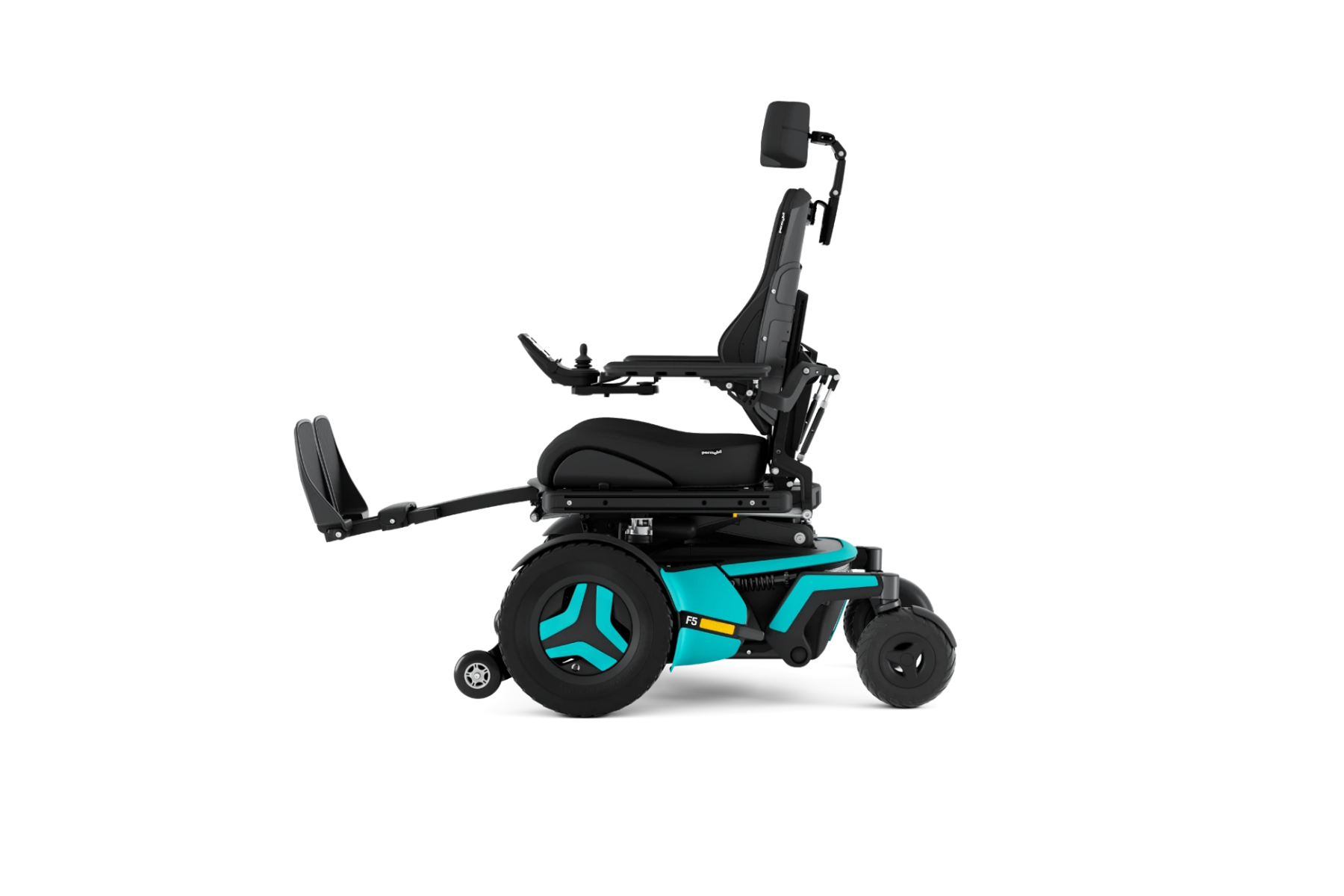

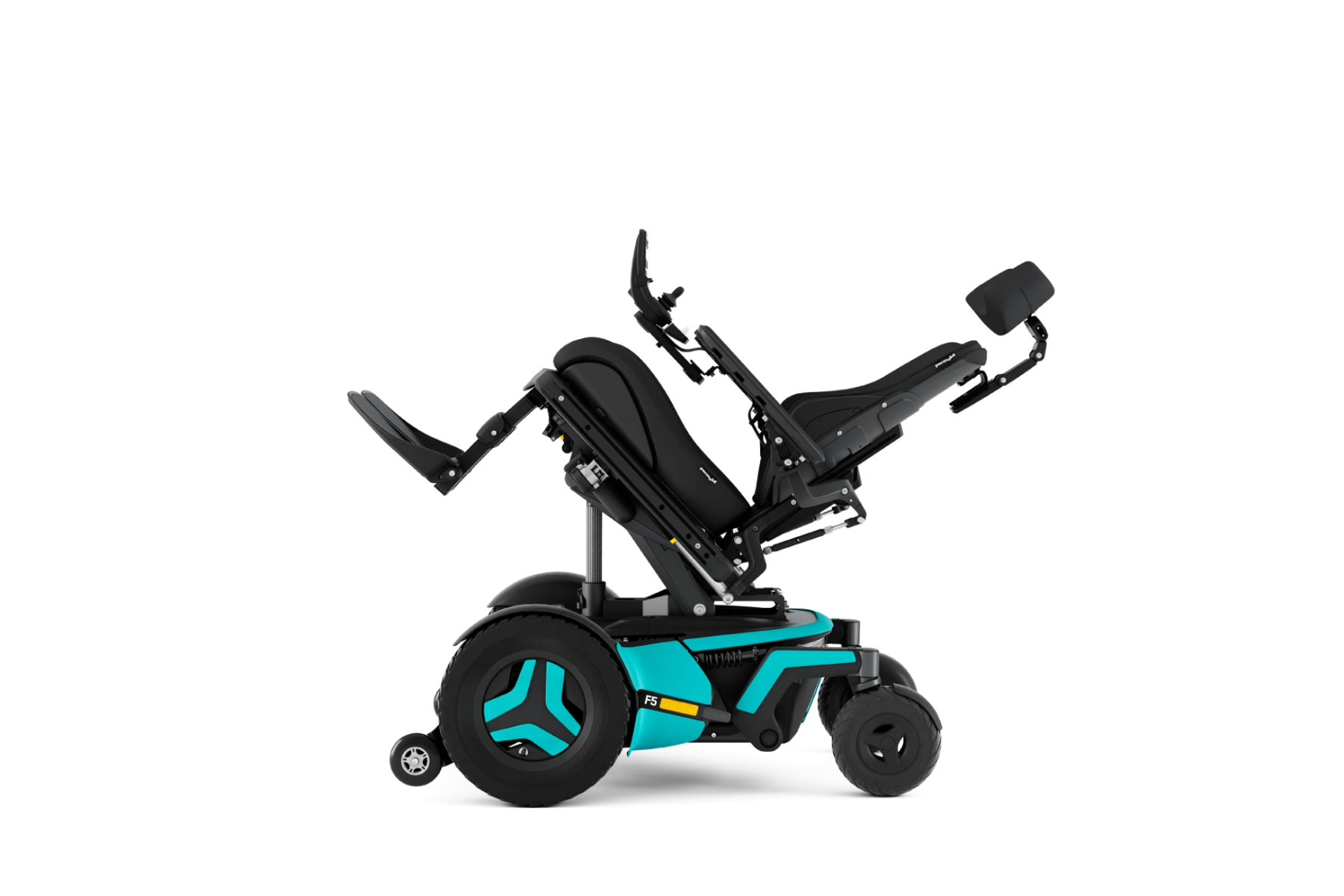

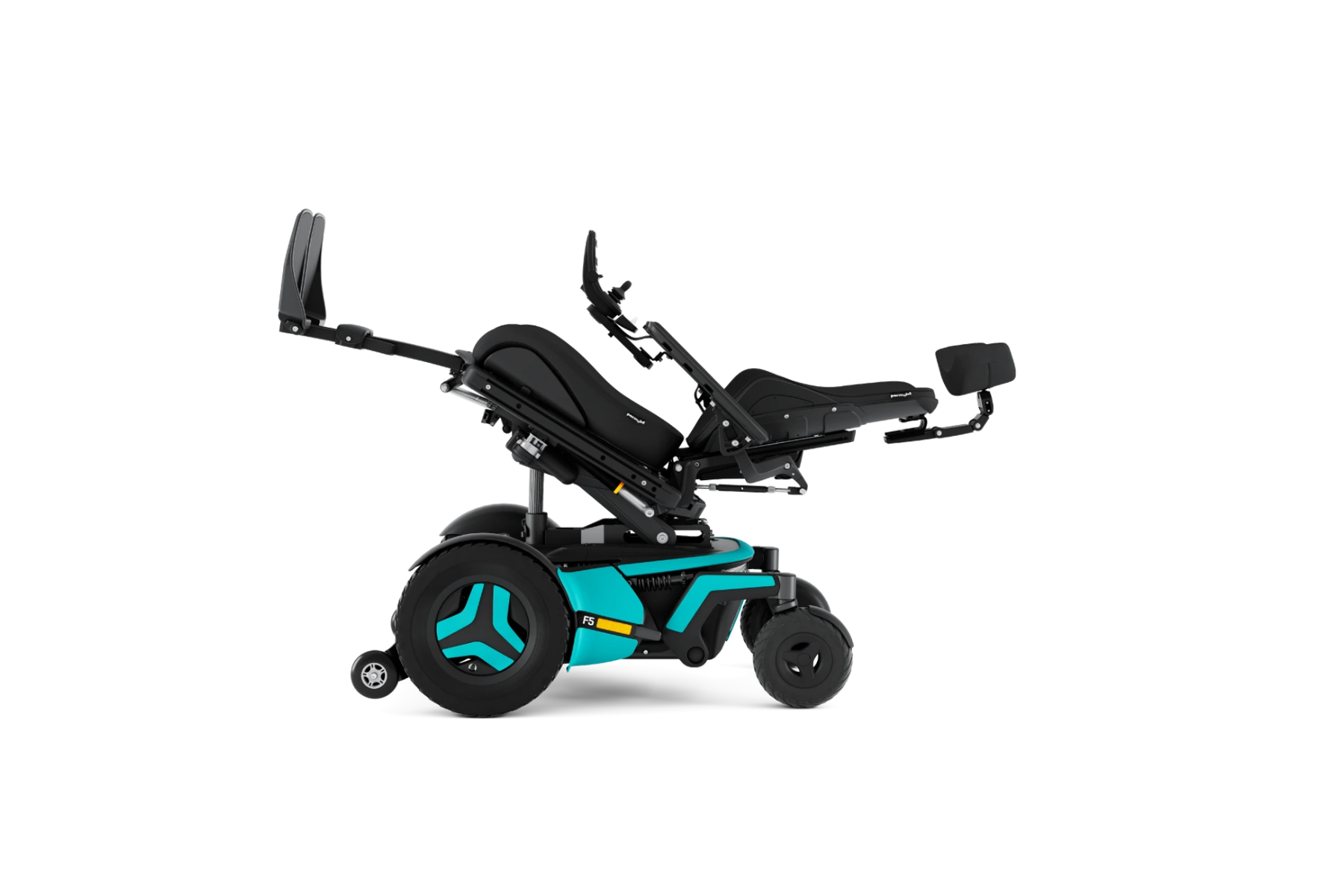

Optional anterior tilt (5°, 10°, 20° or 45°) pairs with 50° posterior tilt, recline and power leg supports to offer full positioning control. A low seat-to-floor height starting from 44.5 cm (17.5”) improves access in various settings.
The F5 features LED headlights, aggressive tread tyres and custom trim colours. With heavy-duty support up to 150 kg, it suits diverse clinical needs. Real-time chair and battery insights are available via the MyPermobil app.
Who it’s for
- For clients who need strong outdoor performance with advanced postural and seating support.
- For therapists wanting a stable front-wheel drive chair with low seat height, tilt options and heavy-duty capacity.
Download product fact sheet:
Key features
Description
- 10 km/h top speed with high torque – supports confident outdoor mobility
- ComfortRide Pro all-wheel suspension – independent oil-dampened shocks reduce vibration and improve control
- Corpus® Ergo seating system – supports alignment, comfort and pressure redistribution
- ActiveReach and ActiveHeight – up to 45° forward tilt and 35.6 cm (14”) elevation with elevated drive
- Low seat-to-floor height from 44.5 cm (17.5”) – enhances accessibility in various settings
- Stretch-Air covers – breathable and washable for improved hygiene
- LED headlights and aggressive tread tyres – improve visibility and traction
- MyPermobil app connectivity – offers real-time range and usage tracking
- Heavy-duty rated to 150 kg – for robust clinical support
Specifications
| Safe Working Load (SWL) | 150 kg |
| Drive Electronics | R-Net 120 A |
| Battery Type | 72 amp Gel |
| Maximum Speed | 10 km/h |
| Driving Range | 32 km |
| Minimum Turning Radius | 76.2 cm (30”) |
| Base Width | 64.8 cm (25.5”) |
| Base Length | 96.5 cm (38”) or 106.7 cm (42”) with anti tips |
| Ground Clearance | 7.6 cm (3”) |
| Seat to Floor Height | 44.5 cm (17.5”) 47 cm (18.5”) 49.5 cm (19.5”) |
| Seat Width | 43.2 cm – 58.4 cm (17” – 23”) In 5.1 cm (2”) increments |
| Seat Depth | 35.6 cm – 55.9 cm (14” – 22”) In 2.5 cm (1”) increments |
| Tilt Option | Posterior: 0° – 50° Anterior: 5°, 10°, 20° & 45° |

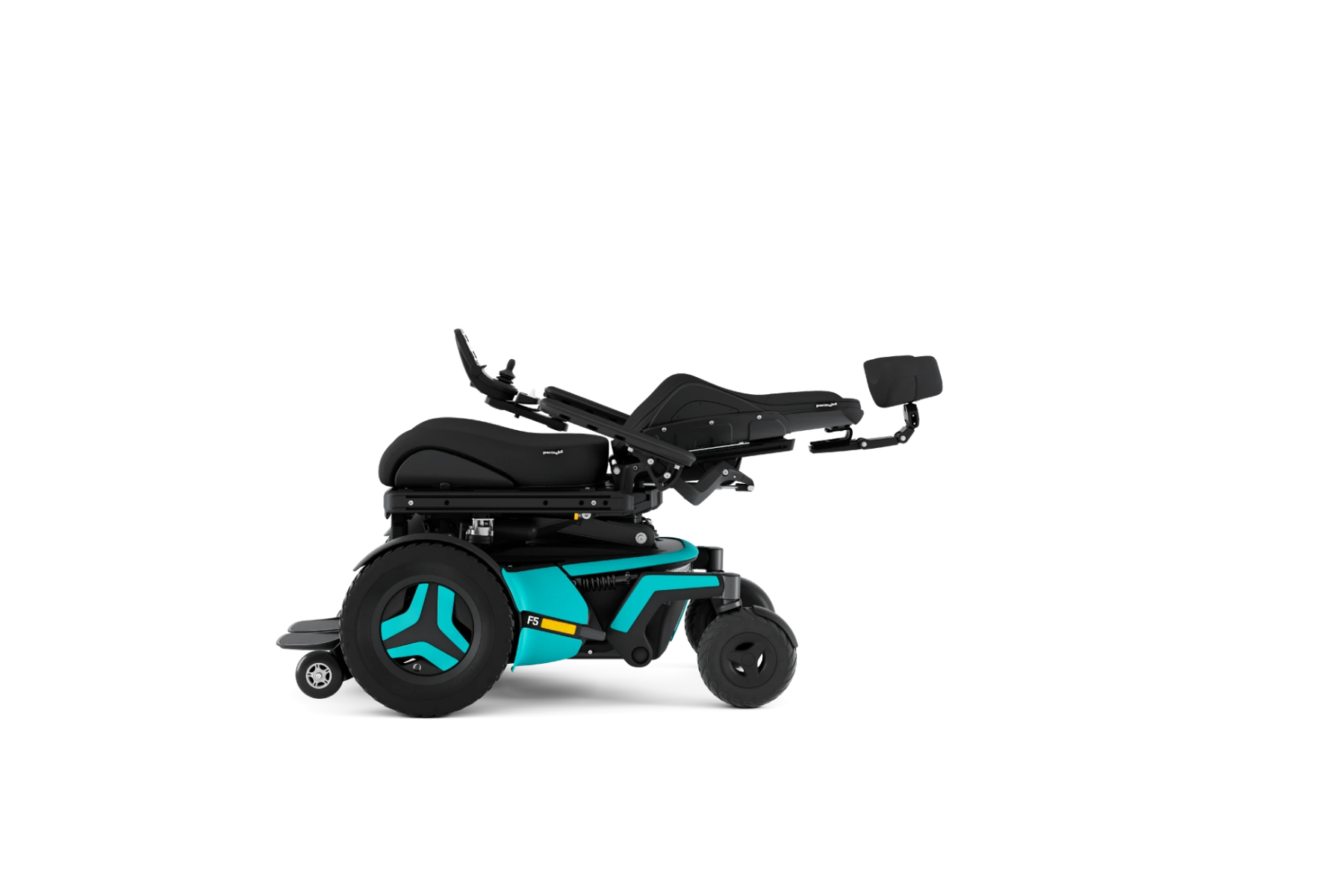

| Recline Option | Manual: 85° – 120° Power: 85° – 175° |
| Legrest Elevation Option | 85° – 170° |
| Seat Elevation Option | 35.6 cm (14”) |
| Armrest Pad Lengths | 25.4 cm (10”) 33 cm (13”) 40.6 cm (16”) 45.7 cm (18”) |
| Backrest Heights | 50.8 cm (20”) 58.4 cm – 71.1 cm (23” – 28”) |
| Warranty | 2 year limited |
| Standards | AS/NZS 3695.2:2013 ISO 7176-19:2008 |
| ARTG Certificate | 275074 |
Note: Specifications may vary based on configuration.
