Quantum Edge 4 Power Wheelchair
Enhanced comfort with all-wheel drive
Overview:
Designed for everyday performance with advanced suspension and superior manoeuvrability
The Quantum Edge 4 Power Wheelchair is an all-wheel drive solution built for comfort, control and accessibility. Featuring Smooth Ride Suspension, customisable...
Read MoreFrequently bought together
Select the add-ons you would like to purchase along with the main item above and add to cart.
Product Description

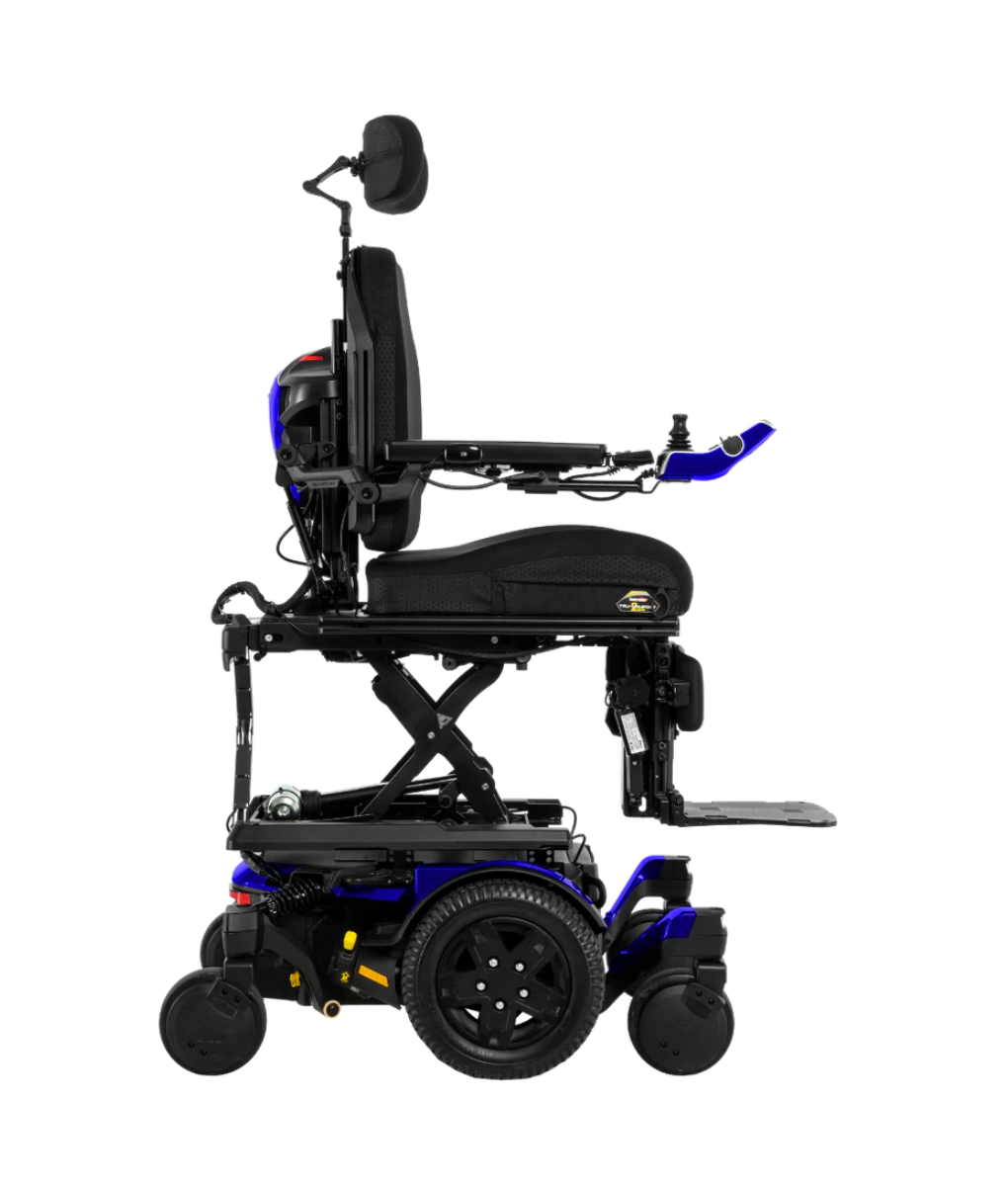

The Quantum Edge 4 Power Wheelchair is the most advanced model in the Edge series, offering improved suspension, powerful 4-pole motors and a versatile range of positioning features. It’s designed to handle everyday obstacles with ease, thanks to large front and rear castor wheels, a responsive turning radius and up to 10 km/h maximum speed.

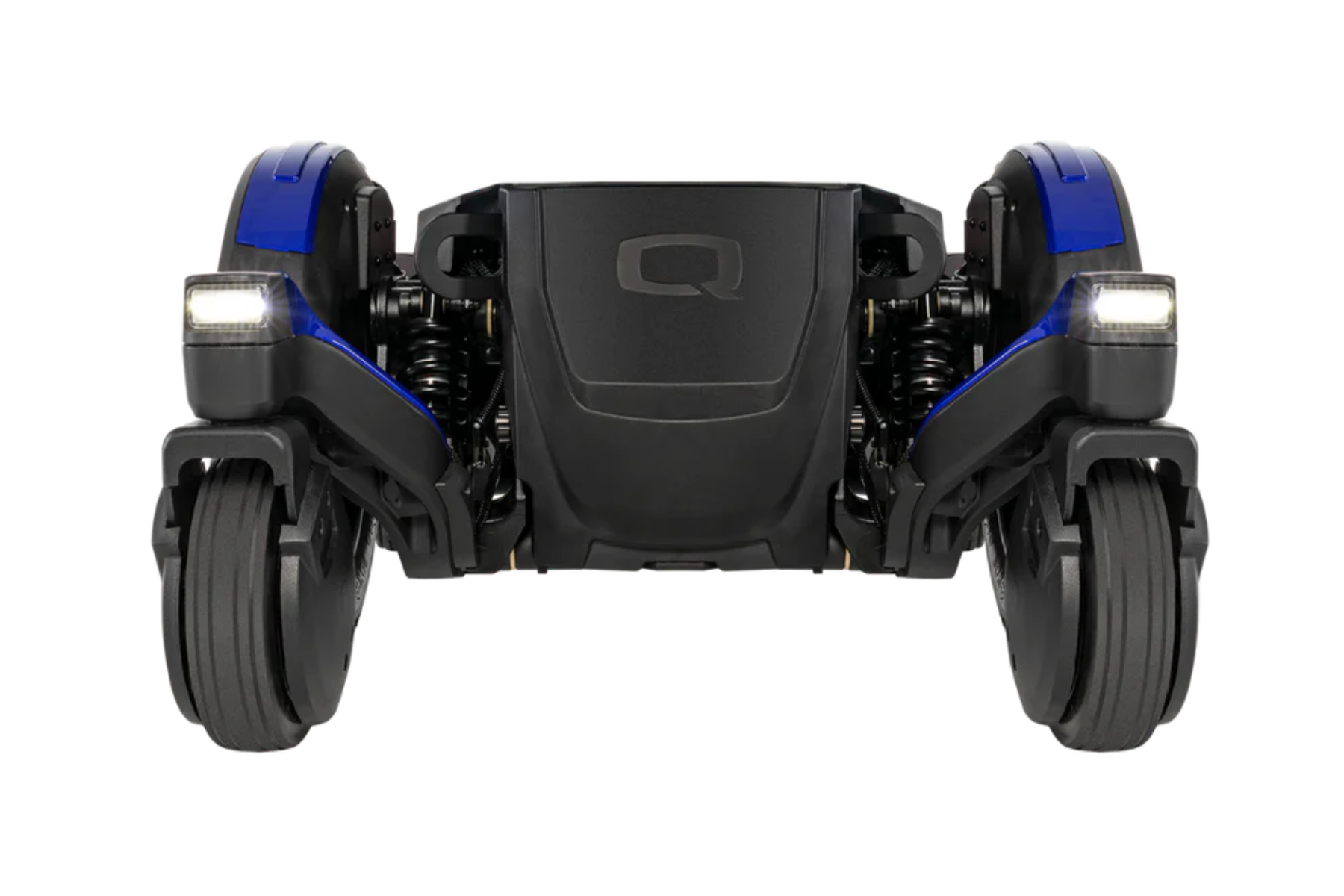

LED accent lights are integrated into the front castors and rear for increased visibility in low-light conditions. A USB charging port is included for powering mobile devices, while the new battery tray supports MK 70 AH batteries – extending range and improving access during servicing.
The Edge 4 is compatible with a wide range of TRU-Balance® seating systems, including anterior tilt and 30.5 cm (12”) iLevel® seat elevation. Electronics options include the intuitive Q-Logic 3 drive controls with Bluetooth, alternative drive methods and the Quantum® Backup Camera.
This model is available in 16 colour options with standard or knobby tyres.
Who it’s for
- For clients who need powered mobility with enhanced suspension, drive performance and customisable seating.
- For therapists seeking high-end scripting flexibility and integrated seating functions for clients with postural or complex access needs.
Download product fact sheet:
Key features
Description
- All-wheel suspension with SRS – for smoother travel across uneven terrain
- Integrated LED lighting – front and rear accent lights improve visibility
- Optional 30.5 cm (12”) iLevel® seat elevation – maintain walking-speed mobility while elevated
- USB charger included – power devices directly from the chair
- Q-Logic 3 drive controls – intuitive, expandable electronic system with Bluetooth® compatibility
- TRU-Balance® 3 & 4 seating systems – enable tilt, recline, elevation and anterior tilt options
- Available in 16 colours – with standard or knobby tyres
Specifications
| Specification | Details |
|---|---|
| Safe Working Load (SWL) | 150 kg |
| Drive Electronics | 120 A Q-Logic 3 |
| Battery Type | MK 70 AH (x2) |
| Maximum Speed | Up to 10 km/h |
| Driving Range | Up to 29.1 km |
| Minimum Turning Radius | 57.9 cm (22.8”) |
| Base Width | 61 cm (24”) |
| Base Length | 97.2 cm (38.3”) |
| Ground Clearance | 7.28 cm (2.87”) |
| Seat to Floor Height | Power tilt: 45 cm – 50.1 cm (17.75” – 19.75”) Lift and tilt: 44.45 cm – 49.5 cm (17.5” – 19.5”) Anterior tilt: 46.3 cm – 53.9 cm (18.25” – 21.25”) |
| Seat Width | Static seat: 30.5 cm – 55.8 cm (12” – 22”) Anterior tilt: 40 cm – 55.8 cm (16” – 22”) Power tilt and tilt/lift: 30.5 cm – 55.8 cm (12” – 22”) |
| Seat Depth | Static seat: 30.5 cm – 50.8 cm (12” – 20”) Anterior tilt: 35.5 cm – 55.8 cm (16” – 22”) Power tilt and tilt/lift: 30.5 cm – 55.8 cm (12” – 22”) |
| Tilt Option | TRU-Balance® 3 & 4 Tilt – included |
| Recline Option | Available via TRU-Balance® 3 systems |
| Legrest Elevation Option | Power articulating foot platform |
| Seat Elevation Option | 30.5 cm (12”) |
| Armrest Pad Lengths | TBC |
| Backrest Heights | TBC |
| Drive Wheel | 35.5 cm (14”) pneumatic or flat free |
| Castors | 17.8 cm (7”) front and rear |
| Weight (including batteries) | 193 kg |
| Warranty | TBC |
| Standards | TBC |
| ARTG Certificate | TBC |
Note: Specifications may vary based upon configuration
