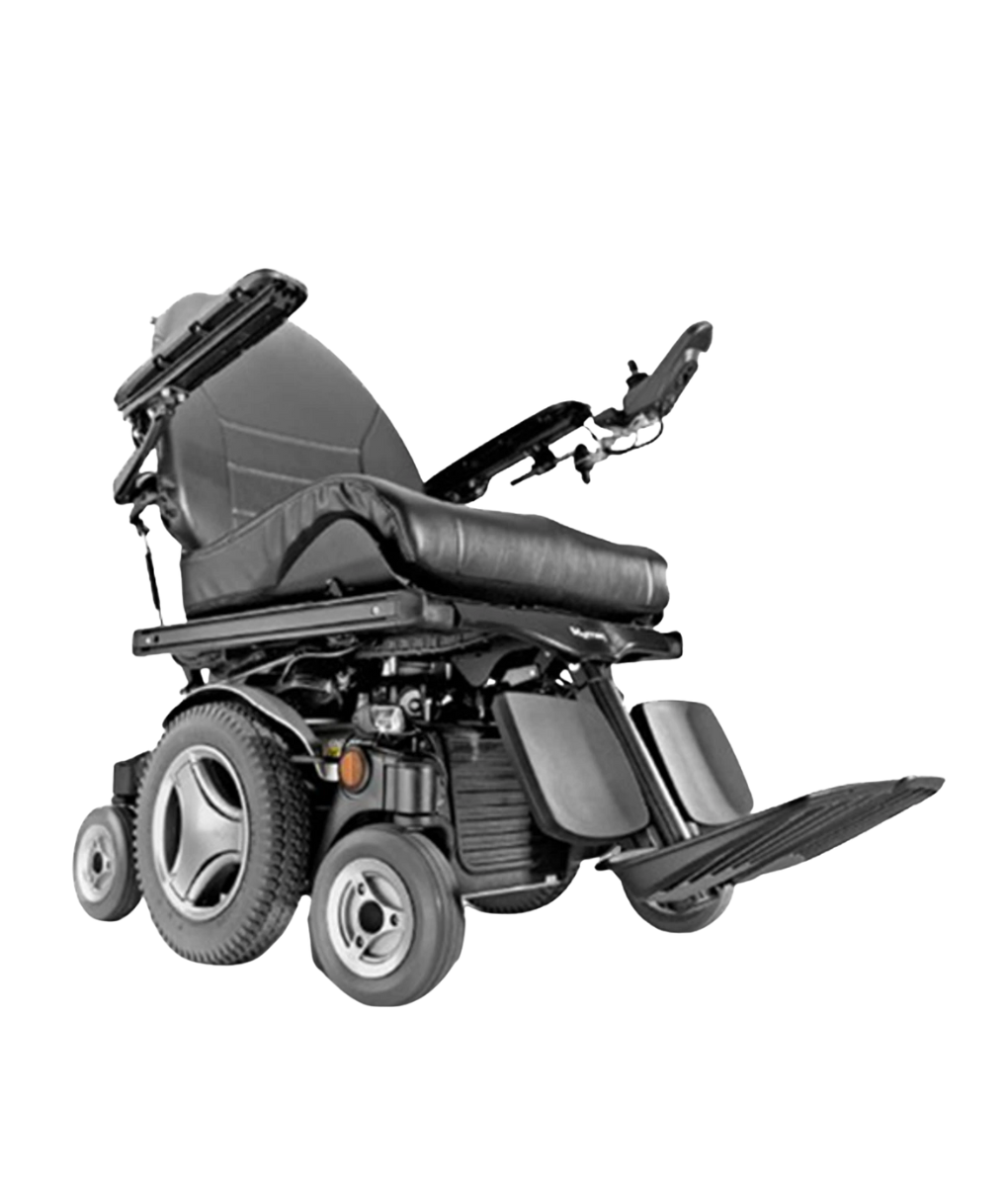

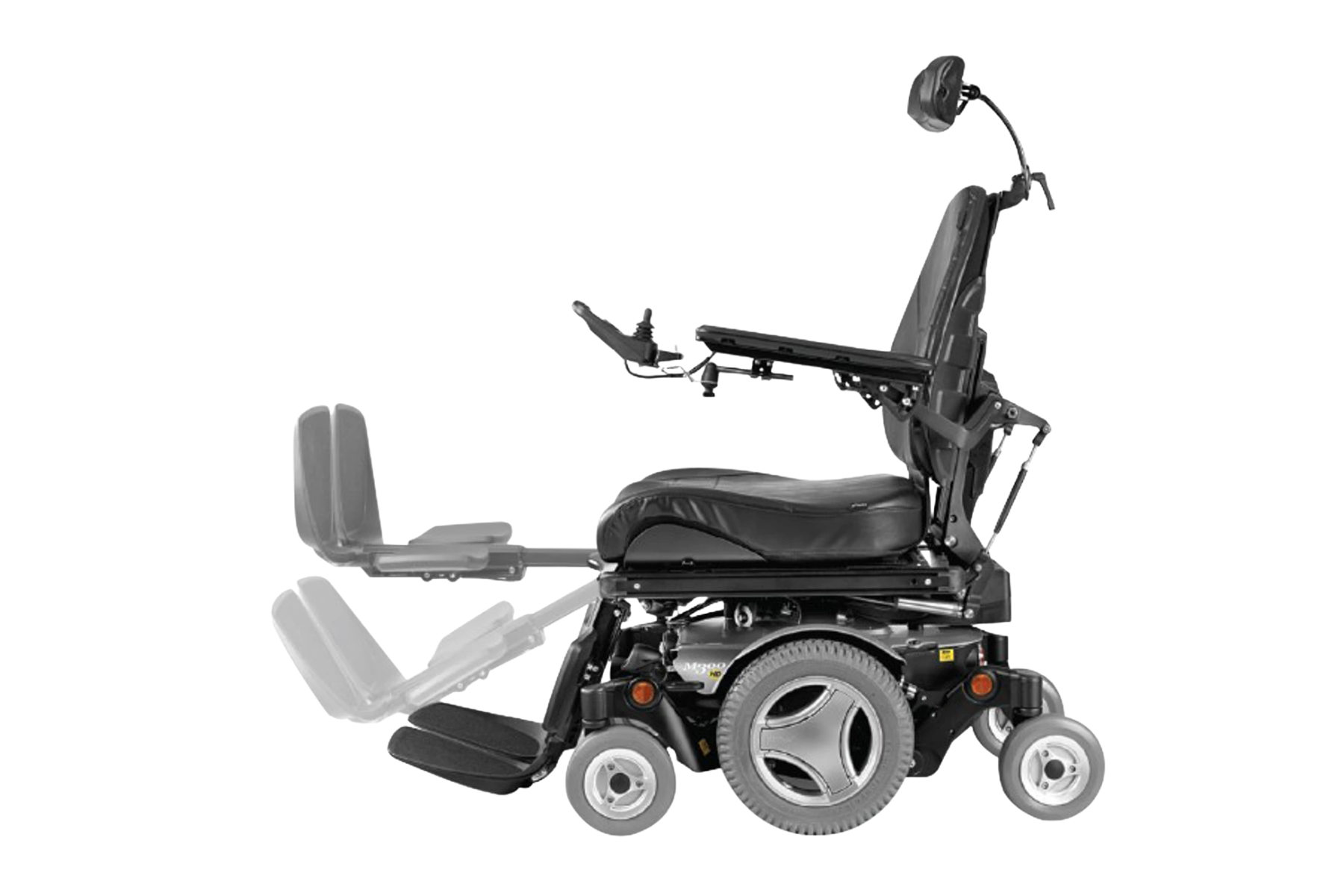

Permobil M300 Corpus HD Power Wheelchair
Heavy-duty performance with full tilt
Overview:
Designed for strength, support and advanced comfort in high-capacity use.
The Permobil M300 Corpus HD Power Wheelchair is a heavy-duty wheelchair engineered to support individuals up to 204 kg. It combines a...
Read MoreFrequently bought together
Select the add-ons you would like to purchase along with the main item above and add to cart.
Product Description
The Permobil M300 Corpus HD Power Wheelchair is built to meet the needs of individuals requiring a higher weight capacity without sacrificing function or comfort. Its reinforced mid-wheel base includes extended width and enhanced suspension for increased stability and control.

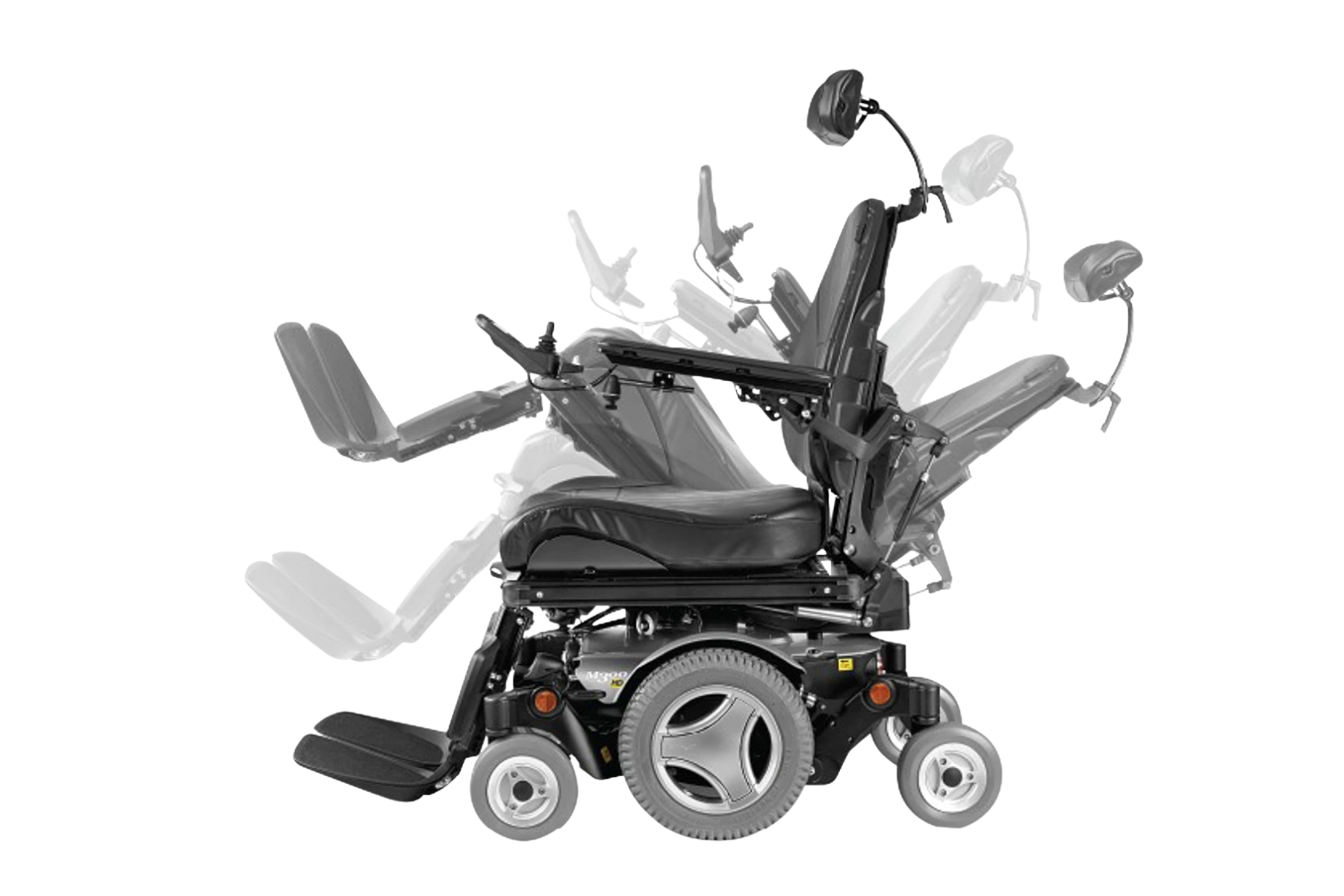

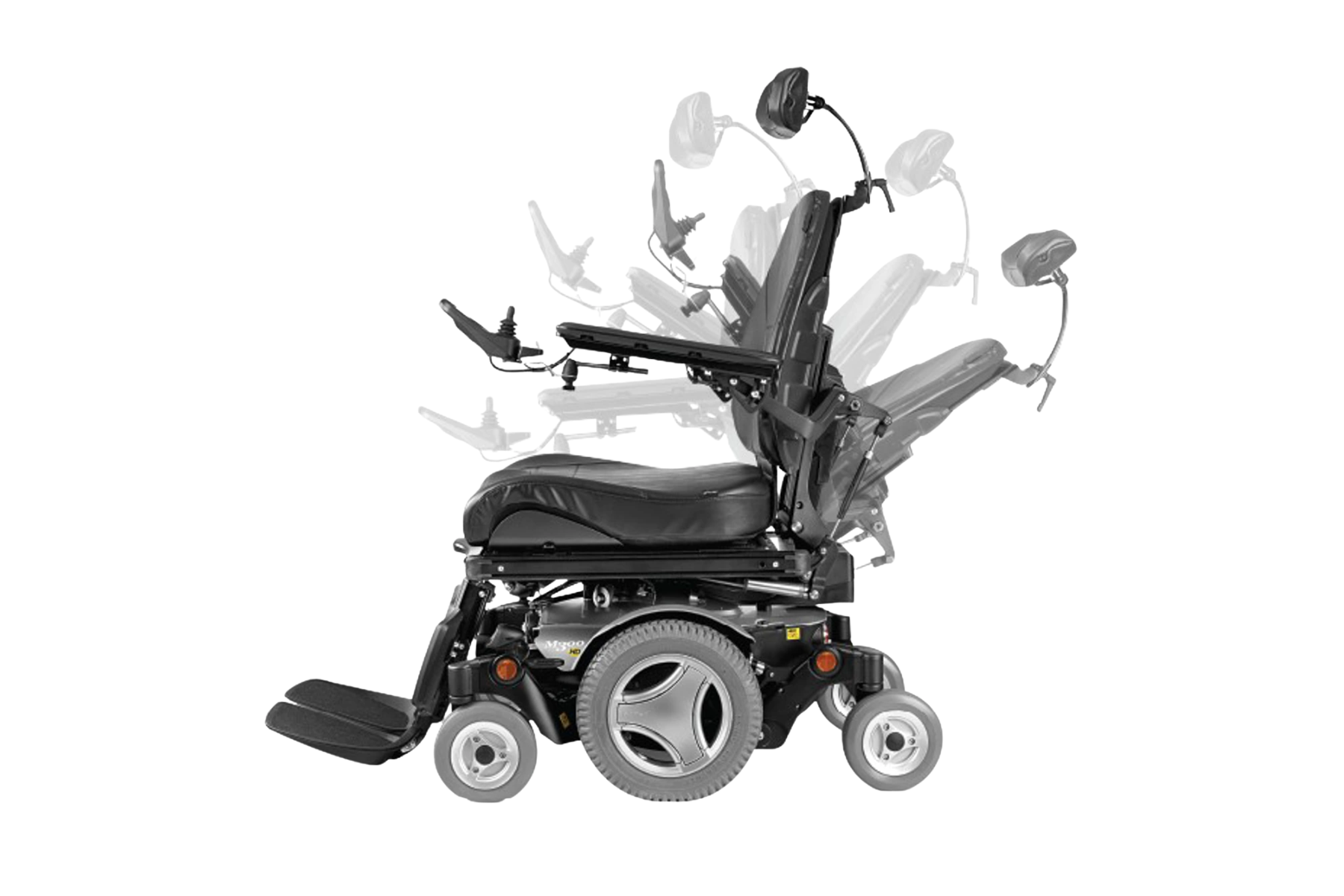

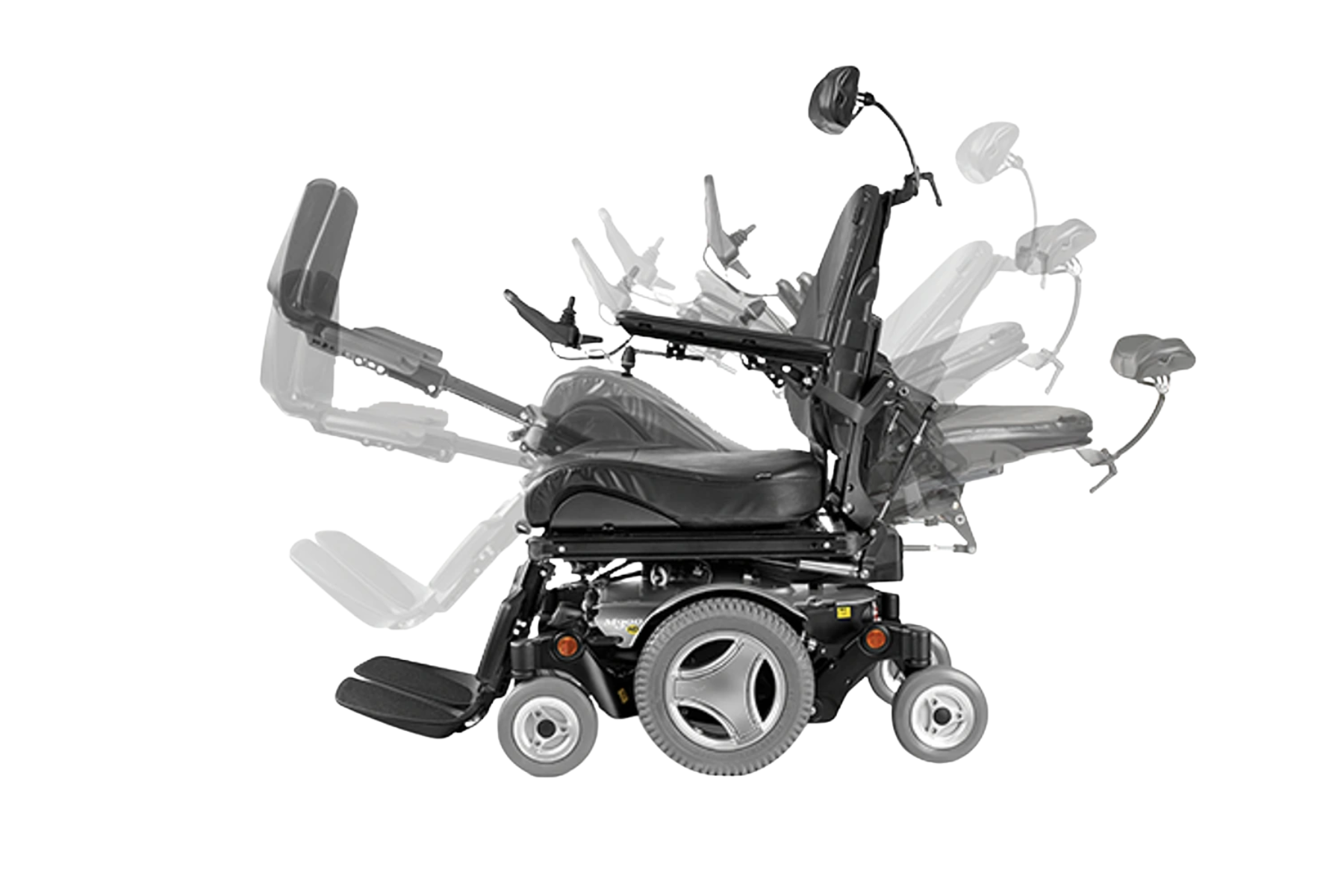

The Corpus® HD seating system provides a robust ergonomic solution, maintaining powered tilt and recline functions with strengthened actuators. The power tilt range of 0° – 45° and recline range of 85° – 150° enable effective postural change and pressure management. The actuators are powerful enough to safely support full leg elevation, including above-heart positioning.
Additional heavy-duty features include reinforced arm and legrests, wider footplates and mesh-style upholstery to support airflow and moisture management. The seating system remains modular for future configuration needs.
With a durable frame, proven drive technology and up to eight colour trims, the M300 Corpus HD balances strength with style for everyday independence.
Who it’s for
- For clients who need a high-capacity power wheelchair with power tilt and recline for daily positioning and comfort.
- For therapists seeking a stable, heavy-duty base with ergonomic seating and reinforced components for larger individuals.
Download product fact sheet:
Key features
Description
- Supports up to 204 kg – reinforced base and actuators for higher weight capacity
- 0° – 45° powered tilt – for pressure redistribution and postural support
- 85° – 150° powered recline – enables full body repositioning and comfort
- Heavy-duty Corpus® seating system – delivers ergonomic support and comfort
- Strong actuators – allow safe foot elevation above heart level
- Reinforced arm and legrests – built for durability in daily use

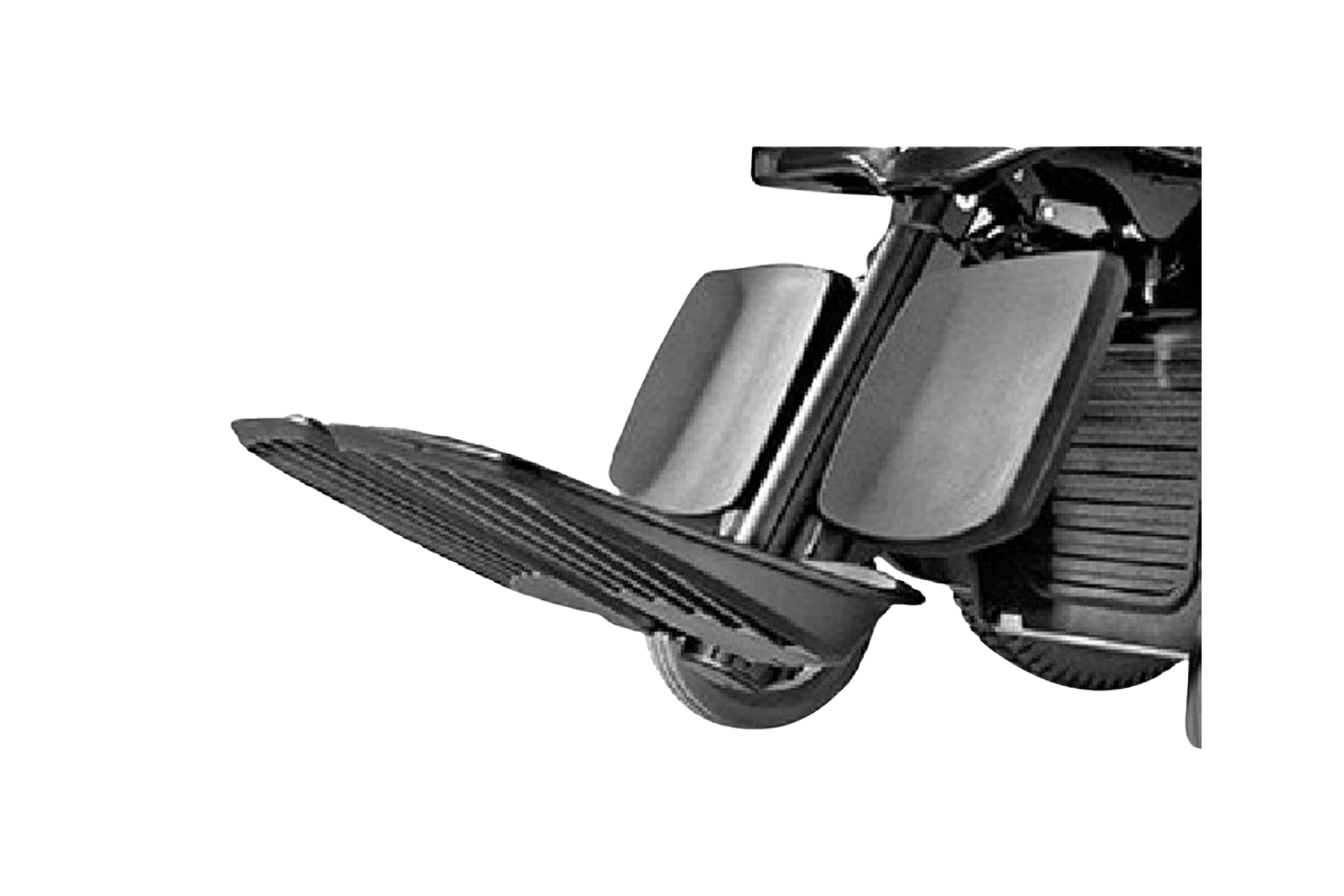

- Wider footplates – supports increased comfort and accessibility
- Durable mesh-style upholstery – promotes airflow and moisture control
- Independent suspension – improves traction and ride comfort on various surfaces
- Available in eight colour trims – offers personalisation without compromise
Specifications
| Specification | Details |
|---|---|
| Safe Working Load (SWL) | 204 kg |
| Drive Electronics | 120 A R-Net |
| Battery Type | 60 AH, 72 AH |
| Maximum Speed | 8 km/h |
| Driving Range | 20 km – 32 km |
| Minimum Turning Radius | 55.9 cm (22”) |
| Base Width | 66 cm (26”) |
| Base Length | 96.5 cm (38”) |
| Ground Clearance | 7.6 cm (3”) |
| Seat to Floor Height | 45.7 cm (18”) 48.3 cm (19”) 50.8 cm (20”) Available with seat elevator or seat tube setup |
| Seat Width | 48.3 cm – 63.5 cm (19” – 25”) In 5.1 cm (2”) increments |
| Seat Depth | 48.3 cm – 63.5 cm (19” – 25”) In 2.5 cm (1”) increments |
| Tilt Option | Power: 0° – 45° |
| Recline Option | Power: 85° – 150° Manual: 85° – 120° |
| Legrest Elevation Option | 85° – 175° (power and manual) |
| Seat Elevation Option | 20.3 cm (8”) |
| Armrest Pad Lengths | 33 cm (13”) 40.6 cm (16”) 45.7 cm (18”) |
| Backrest Heights | 53.3 cm (21”) 61 cm – 73.7 cm (24” – 29”) |
| Warranty | 1 year limited |
| Standards | AS/NZS 3695.2:2013 ISO 7176.19:2008 |
| ARTG Certificate | 275074 |
Note: Specifications may vary based on configuration.
