Last chance Low in stock Only 1 item left!
SKU: S10825
Manufacturer code: HF2027

Oxford

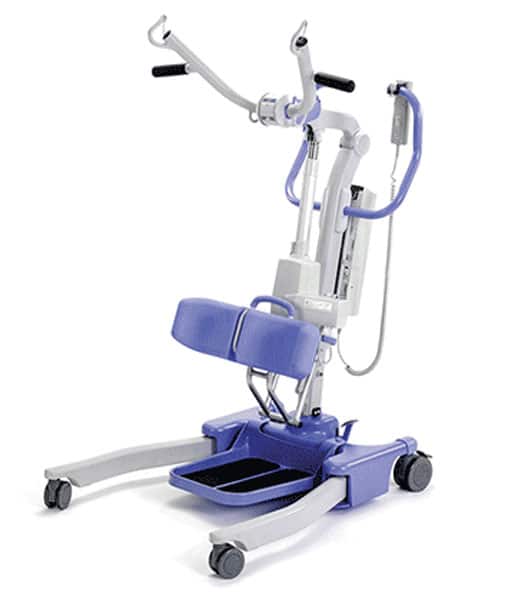

Oxford Journey Stand Up Folding Lifter

Low stock This item will be released at a future date.

$6,499.99

1 available for pre-ordering

Purchase this product now and earn 6,500 Points!
Overview:

Compact, portable and exceptionally versatile

The Oxford® Journey lift is an ultra-compact, portable folding stand aid with best-in-class functionality. It is compact and lightweight allowing care-givers to manoeuvre in tight spaces and can be folded for easy storage or transportation. The unique adjustable cow-horn mechanism supports a wider range of patient heights and sizes, allowing your facility to have one lift that meets the needs of many.

Description

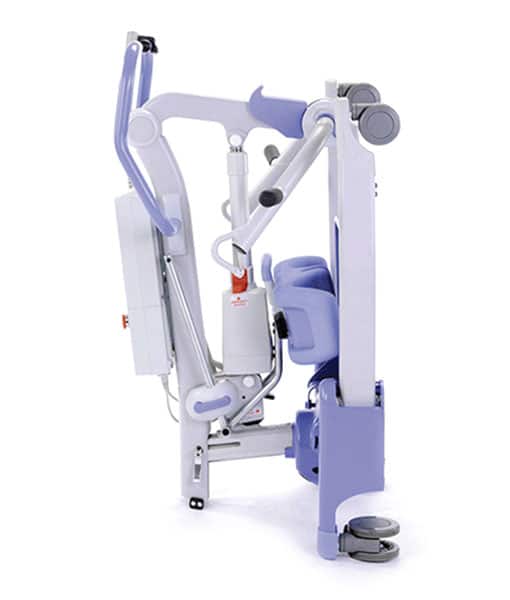

Folding design

Unlike other stand aids on the market, the Journey can fold making it easy to transport and store. This functionality gives active users the option to travel outside the confines of their own home.

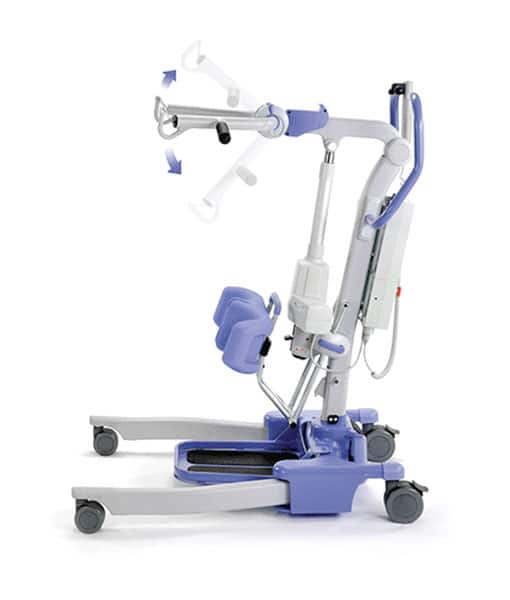

Unique adjustable cow-horn

The Journey’s unique adjustable cow-horn ensures maximum flexibility and improved patient comfort. With three cow-horn height options, the Journey can support a wider range of patient heights and sizes. Simply pull back the trigger mechanism on the boom and select the required cow-horn height.



Smart™ Monitor

The Smart™ Monitor control system records the exact amount of work completed by the actuator each and every time the lift is used, regardless of a patient’s weight or lift height covered. The intelligent system advises the user to schedule key maintenance helping to ensure your lift remains in optimum condition.

  • Identifies total lift actuations and work completed
  • Identifies lift overloads (exceeding SWL)
  • Identifies service interval periods n Increases patient safety and product service life



Removable foot tray

By removing the foot tray, the Journey transforms into a rehabilitation aid that allows a patient to fully stand. Once standing, the patient can be encouraged to walk independently.



Height adjustable knee pad

The Journey’s contoured knee pad is height adjustable to ensure the patient feels comfortable and fully supported during transfer. A retractable safety belt provides additional support for patients needing further reassurance.



Features:

  • Safe working load 155kg / 24st / 342lbs
  • Compact folding design for easy storage and transportation
  • Unique adjustable cow horn function accommodates a range of patient sizes
  • Smart Monitor diagnostic and service controls as standard
  • Ergonomic design considerations and interaction points
  • Height adjustable knee pad with retractable safety belt
  • Removable foot tray for walking/rehabilitation activity

Additional information

Brand

Oxford

Load Capacity (supplier stated)

155 kg

Length of Base

1000 mm

Height of Base

110 mm

Width Overall of Base Closed

685 mm

Width Internal of Closed Base

590 mm

Width Internal of Open Base

875 mm

Turning Circle

1145 mm

Clearance Under Base to ground

30 mm

Weight Overall

40 kg

Width of Castor

75 mm

Height Overall

1130 mm – 1600 mm

Height of Spreader Bar

720 mm – 1530 mm

Warranty

2 Years

Oxford Journey Stand Up Lifter Brochure

Oxford Journey Stand Up Lifter User Manual
