Raz CAT Mobile Shower Commode Chair
Compact tilt commode with growth adjustment
Overview:
Designed for smaller clients requiring tilt and postural support.
The Raz CAT Mobile Shower Commode Chair has a shorter, more compact frame designed for paediatrics, adolescents and smaller adults. It offers...
Read MoreFrequently bought together
Select the add-ons you would like to purchase along with the main item above and add to cart.
Product Description
The Raz CAT Mobile Shower Commode Chair has a 45.7 cm (18”) seat and frame width, allowing easy positioning over most toilets while improving manoeuvrability in tight bathroom spaces.
A depth-adjustable backrest allows seat depths from 27.9 cm – 40.6 cm (11” – 16”). The back frame can also adjust fore and aft, supporting growth and evolving postural needs. This makes the Raz CAT particularly suitable for paediatric and adolescent prescriptions.

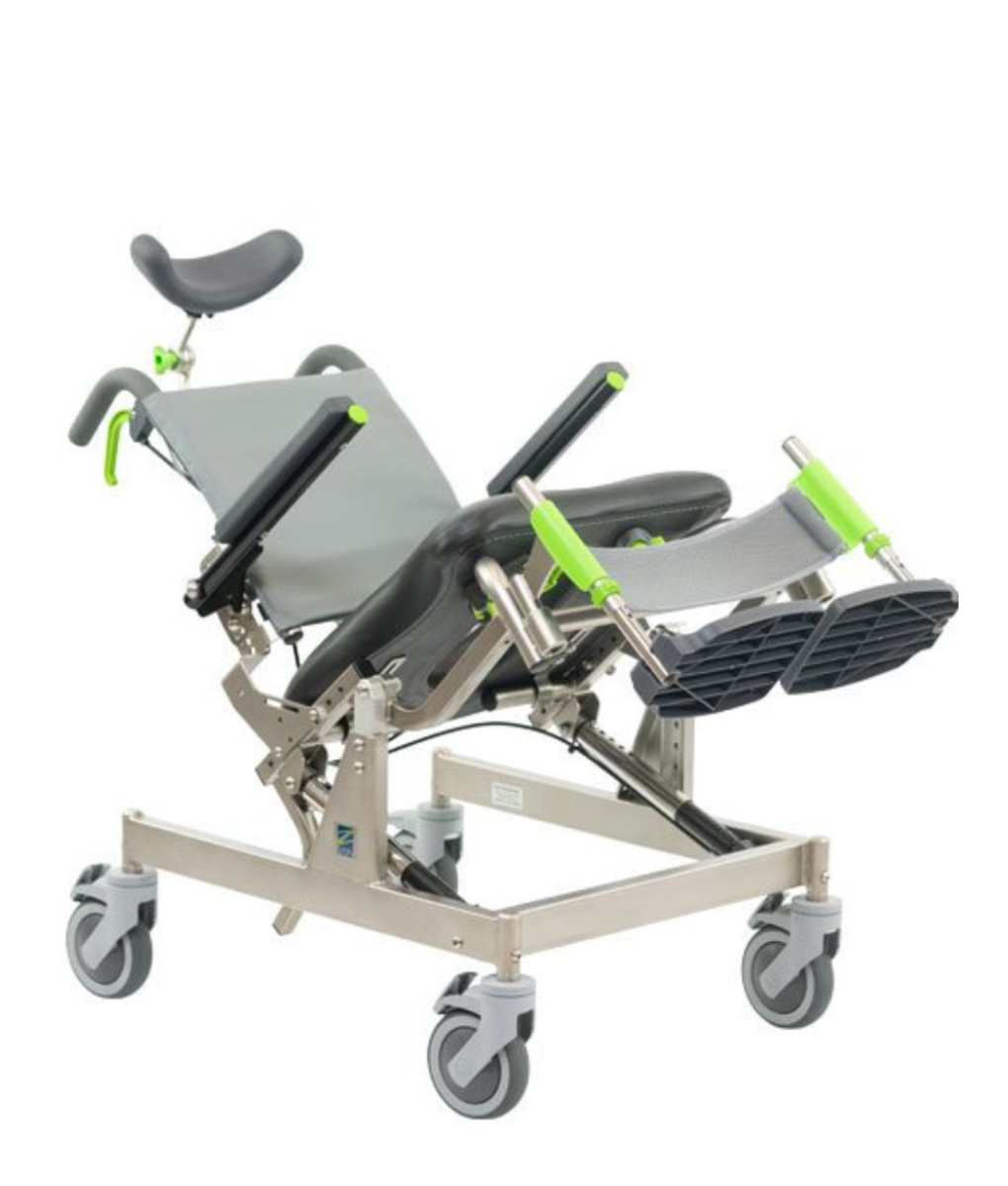

The tilt-in-space function provides smooth, infinite adjustment up to 40° using locking pneumatic springs. Tilt supports pressure redistribution, positioning and hygiene routines. A tilt assist pedal allows attendants to initiate tilt using leg strength, supporting safer handling when assisting heavier individuals or those with forward weight distribution.
The contoured moulded seat promotes pelvic stability and pressure reduction. An oblong aperture accommodates seat depth adjustment, and Raz’s Ischial Pelvic Alignment System (IPAS) enables 5.1 cm (2”) fore/aft or 2.5 cm (1”) lateral seat adjustment for precise positioning.
The stainless steel frame offers 10.2 cm (4”) of height adjustment without interfering with toilet bowls. Dual-locking castors secure both swivel and roll functions during transfers and care tasks.
Back frames are available in multiple widths and heights, with tension-adjustable upholstery and adjustable back angle. A wide range of Raz accessories allows the chair to be configured for complex postural requirements, including custom seats.
Who it’s for
- For children, adolescents and smaller adults who require tilt-in-space positioning and a compact commode frame.
- For therapists seeking a paediatric shower commode chair with growth capacity and precise postural adjustment.
Download product fact sheet:

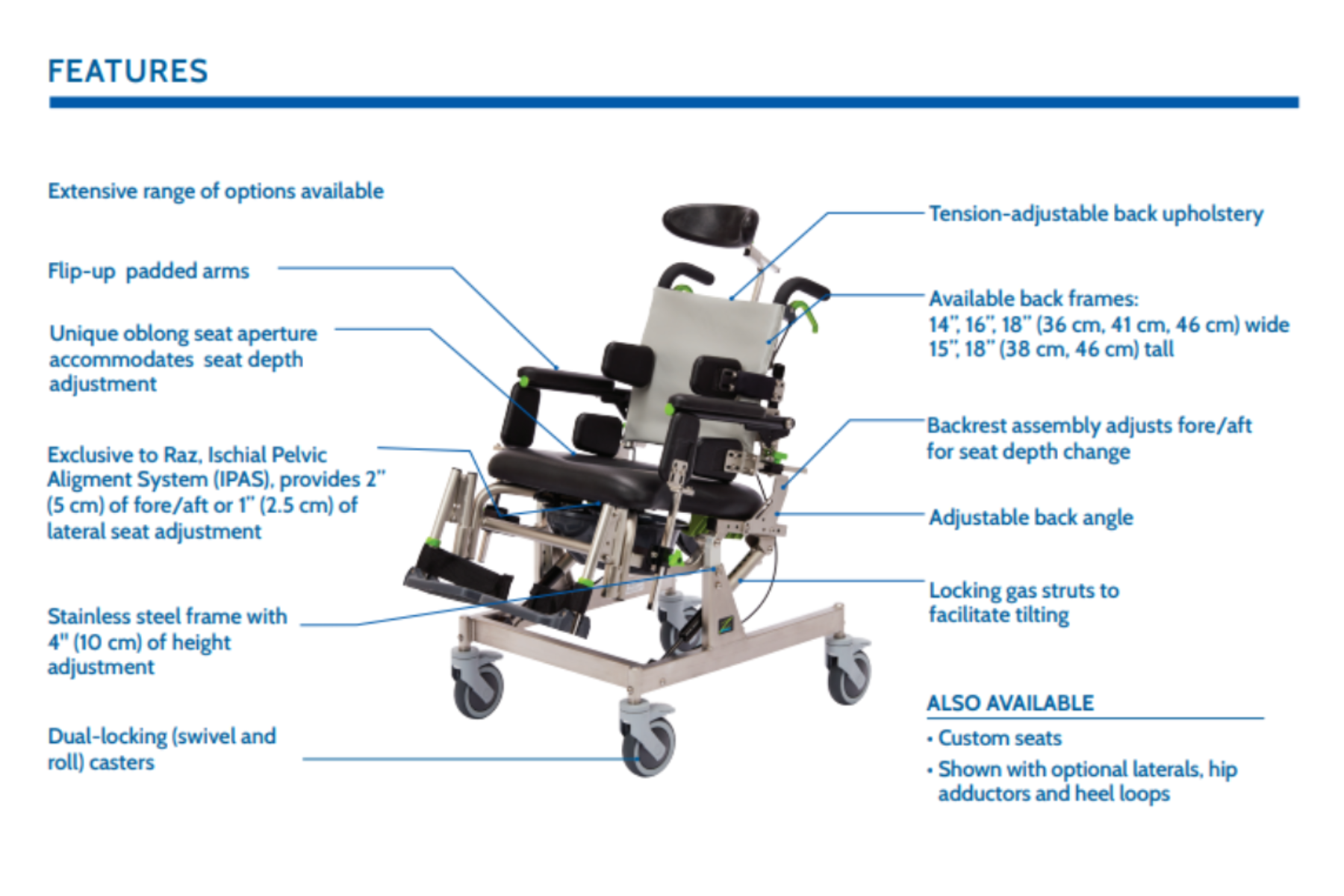

Key features
Description
- Compact base frame – improves manoeuvrability in smaller bathrooms
- Tilt-in-space up to 40° – supports pressure redistribution and comfort
- Tilt assist pedal – assists attendants when initiating tilt
- Depth-adjustable backrest – accommodates growth and changing needs
- IPAS seat adjustment system – enables fine pelvic positioning
- Stainless steel frame – durable and corrosion-resistant
- Dual-locking castors – secure positioning during transfers
- Contoured moulded seat – supports pelvic stability and pressure management
- Extensive accessory range – configurable for complex needs
Specifications
| Specification | Details |
|---|---|
| Safe Working Load (SWL) | 115 kg |
| Gross Weight | 25 kg |
| Overall Width | 55.2 cm (21.75”) – 58.4 cm (23”) |
| Overall Length | Upright 81.3 cm (32”) |
| Seat Width | 45.7 cm (18”) |
| Seat Depth | 27.9 cm – 40.6 cm (11” – 16”) |
| Overall Seat Length | 81.3 cm (32”) |
| Seat Height | 54.6 cm – 64.8 cm (21.5” – 25.5”) |
| Backrest Height | 38.1 cm (15”), 45.7 cm (18”) |
| Backrest Width | 35.6 cm (14”), 40.6 cm (16”), 45.7 cm (18”) |
| Tilt Range | 0° – 40° tilt-in-space |
| Warranty | Lifetime warranty against corrosion on frame; 2 – year limited frame warranty; 1 – year limited warranty on other components |
