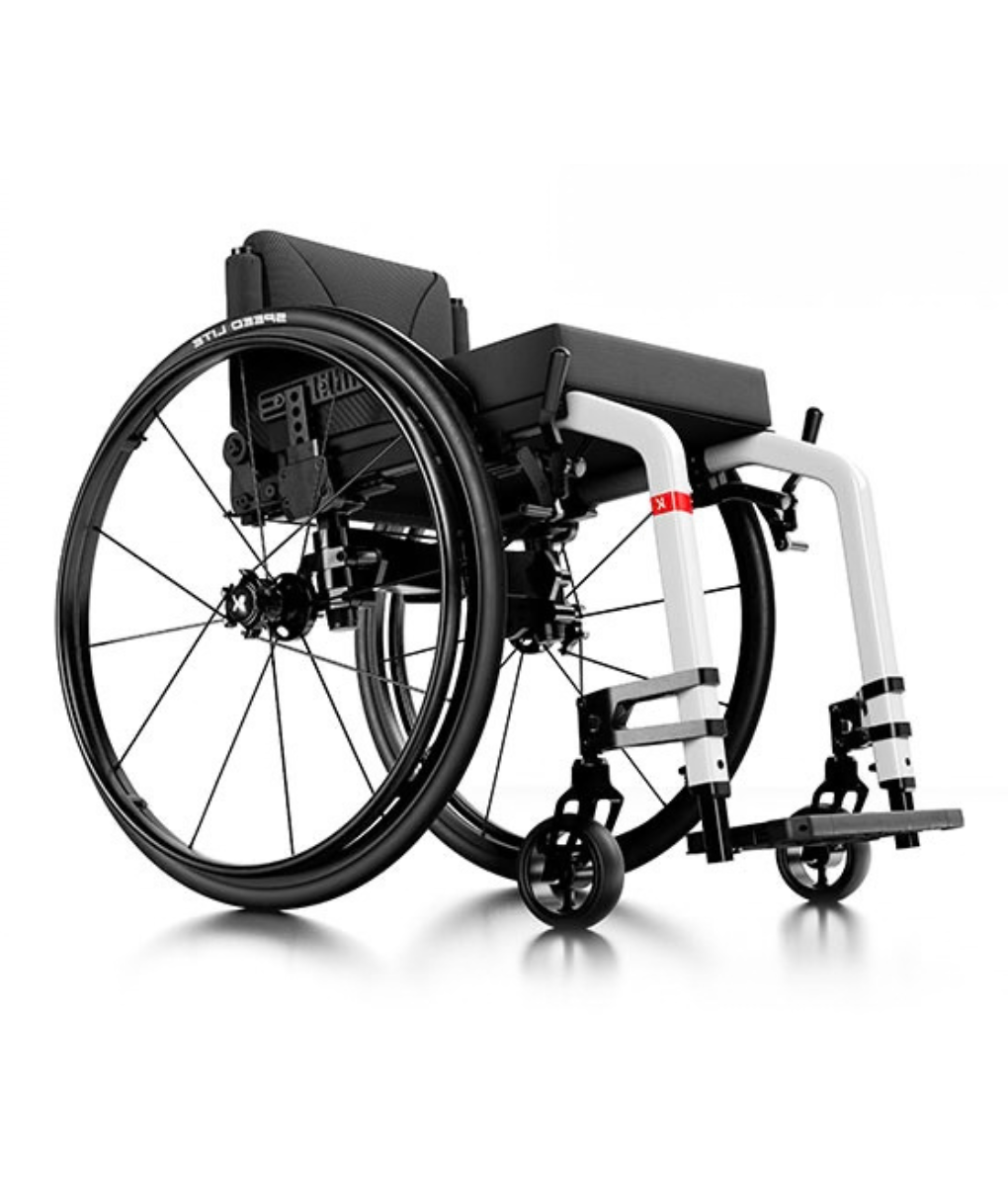

Küschall Champion Manual Wheelchair
Rigid performance with folding convenience
Overview:
Combines the driving performance of a rigid wheelchair with the convenience of a folding frame.
The Küschall Champion Manual Wheelchair is an active wheelchair model that delivers the handling and efficiency of a rigid frame with the...
Read MoreFrequently bought together
Select the add-ons you would like to purchase along with the main item above and add to cart.
Product Description
The Küschall Champion Manual Wheelchair is designed for active individuals who want the performance of a rigid frame without sacrificing portability. Its unique folding mechanism creates a highly rigid structure when in use, while allowing the wheelchair to fold into a compact size for transport and storage.
Unlike traditional folding wheelchairs, the Champion uses an advanced hybrid frame with a single folding unit that maintains excellent driving characteristics while offering extensive adjustment. The folding unit provides nine centre of gravity positions, rear seat height adjustment and multiple mounting configurations to support individual clinical and functional requirements.
A hydroformed aluminium front frame increases frame stiffness while reducing weight. It also provides an ergonomic grip point that assists with transfers. Combined with the lightweight active brake, the Champion delivers responsive handling and confident braking without unnecessary weight.
For those who travel regularly, the Champion offers practical portability. The optional SK (Swiss Knife) folding mechanism allows the wheelchair to fold even smaller, making it easier to transport by car or store when not in use.
The Champion is available in a wide range of sizes and can be customised with a choice of frame colours and decal designs to create a wheelchair that reflects individual preferences. (Additional lead time may apply for some designs.)
Who it’s for
- For clients seeking the driving performance of a rigid wheelchair with the convenience of a folding frame.
- For therapists wanting a highly configurable active wheelchair that balances portability, performance and precise setup.
Download product fact sheet:
Key features
Description
- Hybrid folding frame – delivers rigid wheelchair performance with the convenience of compact folding
- Unique folding mechanism – provides excellent frame stiffness while folding quickly for transport
- Nine centre of gravity positions – supports fine-tuning of propulsion and handling
- Hydroformed aluminium frame – increases stiffness while reducing weight and provides an ergonomic grip for transfers
- Adjustable rear seat height – helps achieve an optimal seating position
- Lightweight active brakes – improve control while reducing overall wheelchair weight
- Optional SK folding system – folds to an even more compact size for travel and storage
- Custom frame colours and decals – personalise the wheelchair with a choice of frame finishes and graphic designs
Specifications
| Specification | Details |
|---|---|
| Safe Working Load (SWL) | 120 kg |
| Base Width | Seat Width + 160 mm – 240 mm |
| Base Length | 75° approx. 930 mm 90° approx. 830 mm |
| Seat Width | 36 cm – 48 cm (14.2” – 18.9”) |
| Seat Depth | 34 cm – 48 cm (13.4” – 18.9”) |
| Front Seat Height | 45 cm – 54 cm (17.7” – 21.3”) |
| Rear Seat Height | 39 cm – 49 cm (15.4” – 19.3”) |
| Backrest Height | 30 cm – 46.5 cm (11.8” – 18.3”) |
| Backrest Angle | 76°, 80.5°, 85°, 89.5°, 94° |
| Frame Angle | 75° or 90° (straight or tapered) |
| Centre Of Gravity | 9 positions |
| Camber | 0°, 1° or 3° |
| Front Castor | 3” / 4” / 5” |
| Rear Wheel | 24” / 25” / 26” |
| Frame Material | Hydroformed aluminium |
| Total Weight | Approx. 9.2 kg |
| Transport Weight (Excl. Rear Wheels) | Approx. 6.7 kg |
| Warranty | Frame: 5 Years Components: 2 Years |
| Standard | AS/NZS 3695.1 |
| Transit Options | Not transit approved |
| ARTG Certificate | 129939 |
| Compatible With Power Assist | Yes |
