Additional information

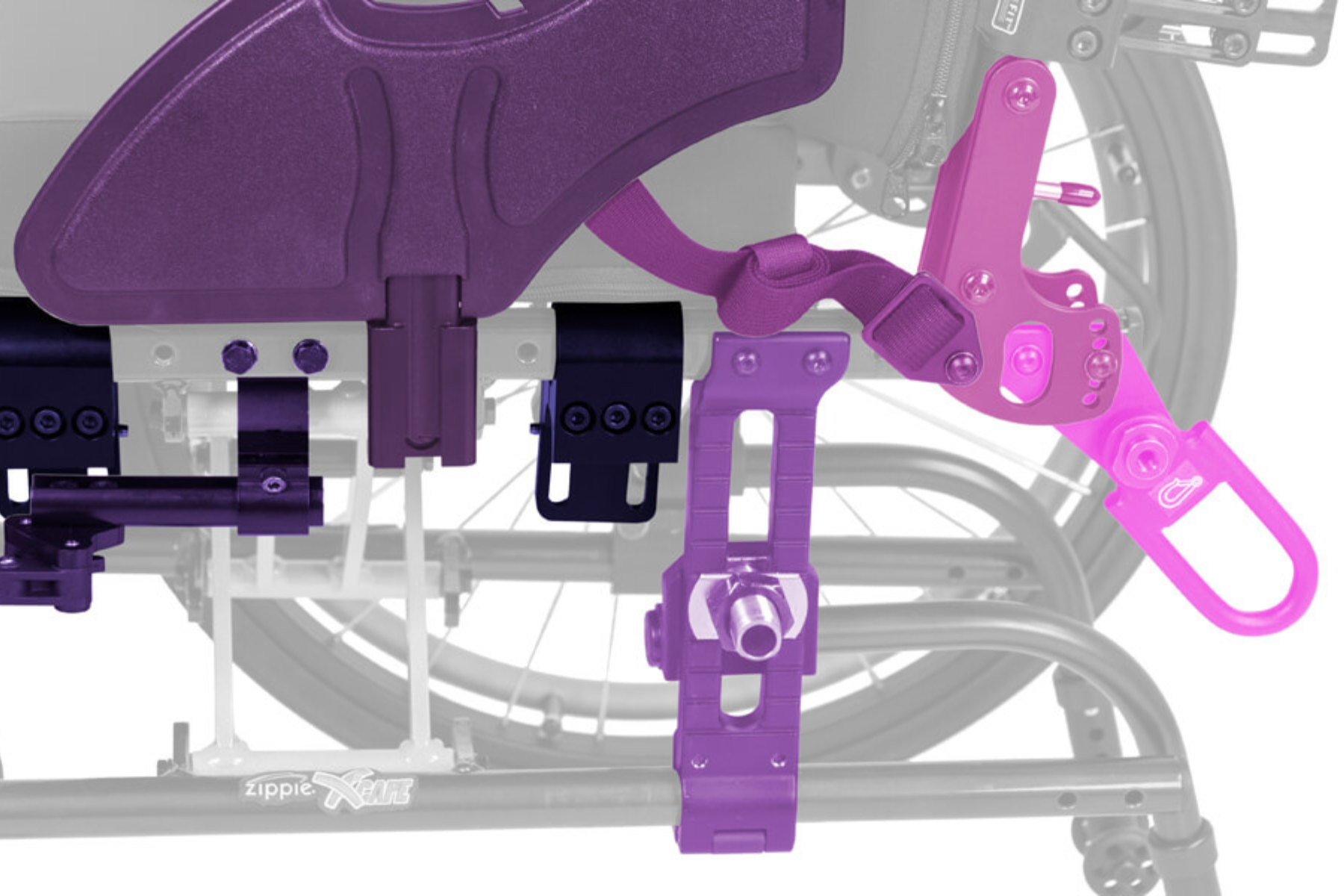

Transit Option | Yes |
---|---|
Chair Weight | 8.6 kgs – 8×8” fixed front frame, 20” lite spoke wheels. Excludes armrests, push handles & anti-tips. |
Weight Capacity | 74 kgs (w/o seating) |
Overall Width | 14.8" to 26.5" |
Seat Widths | 8" to 16" (grows to 18") |
Seat Depths | 8" to 18" (grows to 20") |
Tubing Diameter | Bottom Tube: 7/8" |
Back Angle Adjustment | Fore (-) 8° to Aft (+) 24° |
Front Seat-to-Floor Heights | 13" to 19" |
Rear Seat-to-Floor Heights | 11" to 18.5" |
Footrest/Frame Angle | 80° (Z-finity™may be adjusted to achieve a wide range of footrest angles) |
Vertical Axle Plate Adj. | 4" |
Armrest Options | T-Post w/Sideguard, Flip-up, Adjust. Locking Flip-up, Length Adjust. Locking Flip-up, Single Post Height Adjustable |

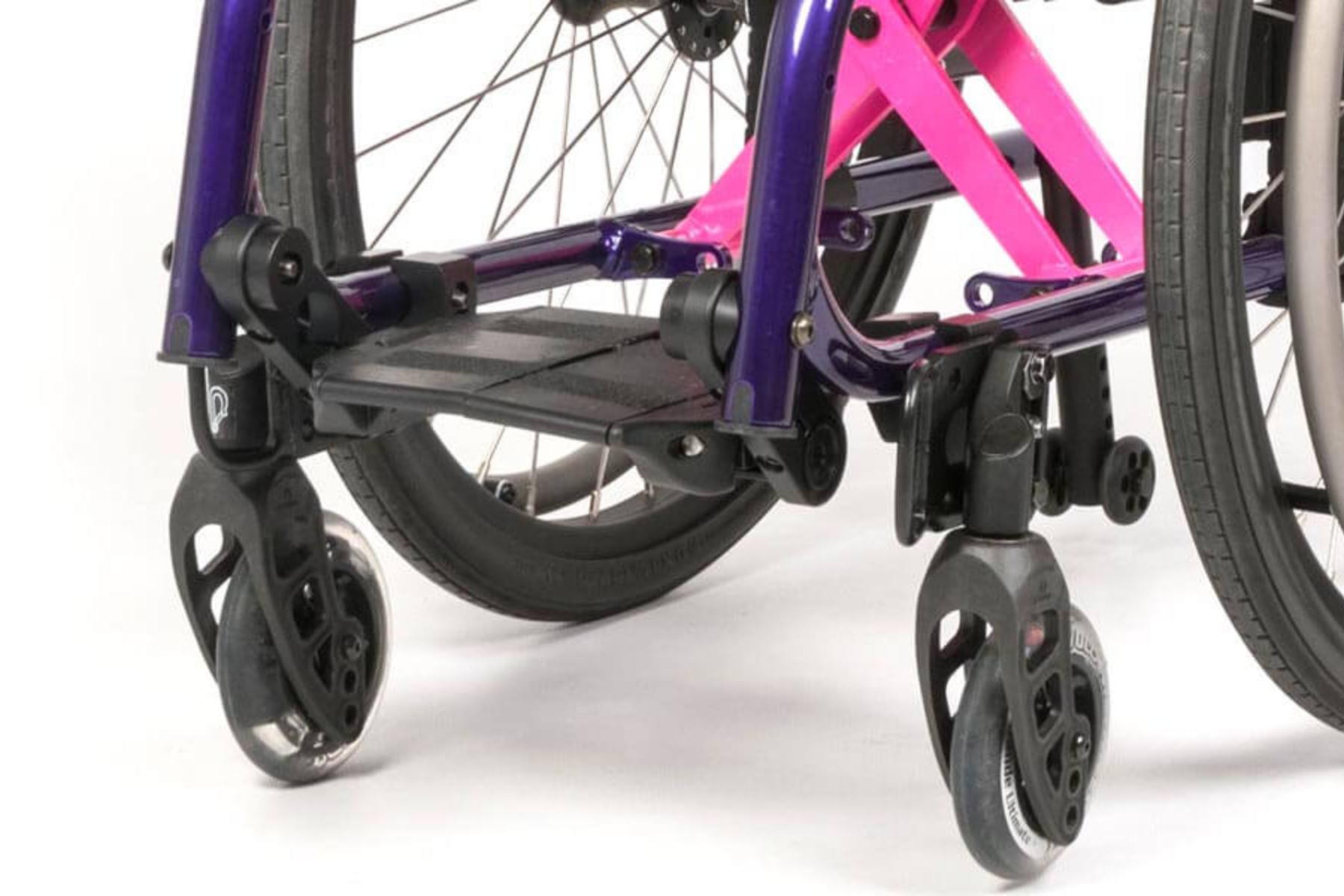

Caster Sizes | 3”, 4”, 5”, 6” |
Rear Wheel Sizes | 12", 16", 20", 22", 24" |
Back Types | Standard (adjustable) and Dynamic |
Back Heights | 9" to 24" |
Back Post Options | Straight (no push handle), Integral Push Handle, Folding Stroller Handle |
Center of Gravity Adj. | 3" (-0.5" to 2.5") |
True Fit or One-Time Free Growth Kit | Yes |
Warranty | Limited / Lifetime |
