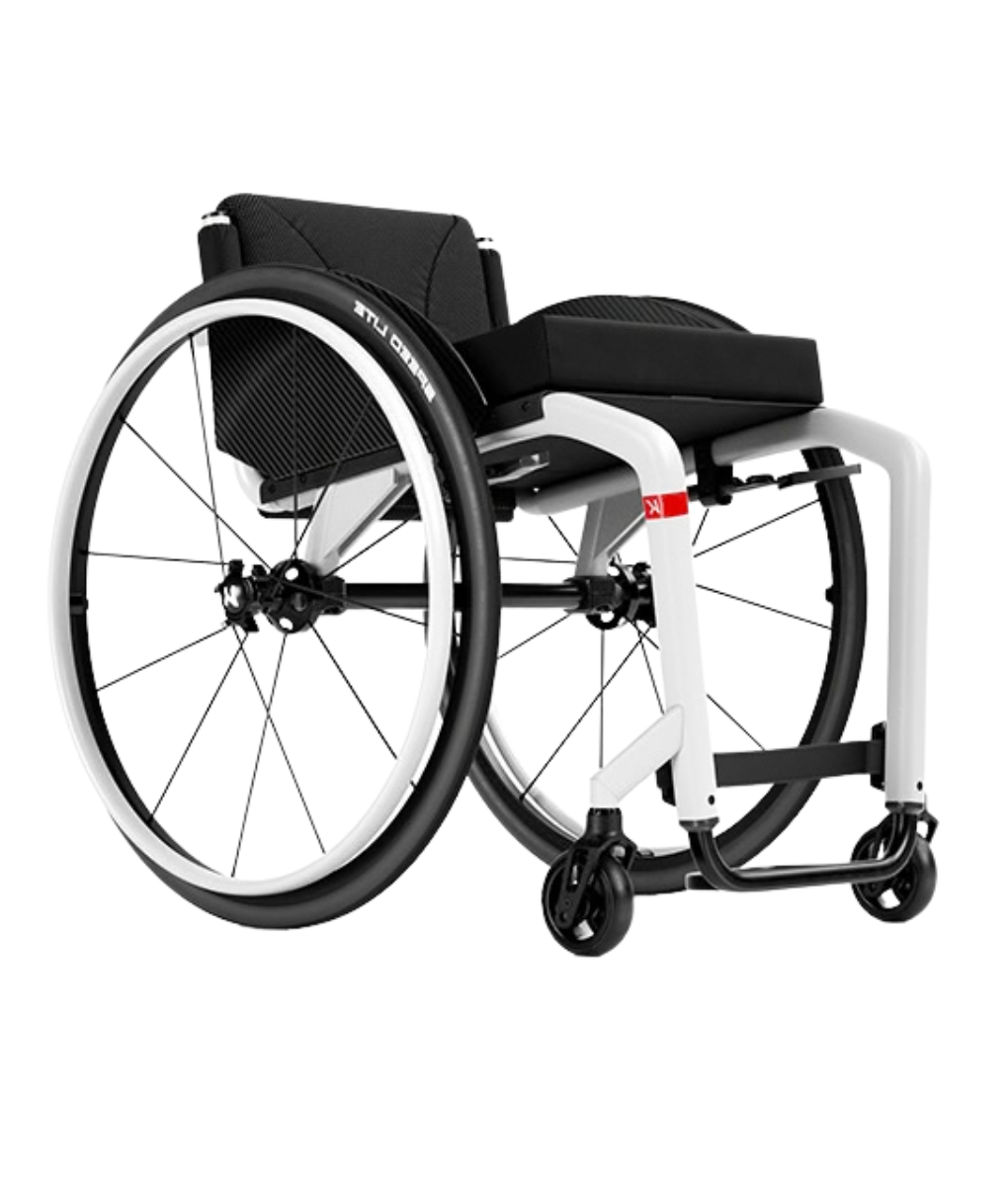

Küschall The KSL Manual Wheelchair
Premium welded performance with precise fit
Overview:
Engineered for precise handling, efficient propulsion and uncompromising performance.
The Küschall The KSL Manual Wheelchair is Küschall’s lightest rigid wheelchair, designed for experienced and active individuals seeking maximum responsiveness and efficiency....
Read MoreFrequently bought together
Select the add-ons you would like to purchase along with the main item above and add to cart.
Product Description
The Küschall The KSL Manual Wheelchair is built for active individuals who are experienced in wheelchair use, who want the highest level of performance from a rigid wheelchair. Its lightweight design and refined frame geometry maximise propulsion efficiency while delivering responsive, predictable handling.
Every KSL is configured to provide a precise fit, allowing the wheelchair to work with each individual’s seating, positioning and mobility requirements. The rigid frame transfers propulsion energy efficiently, helping reduce effort during everyday mobility.

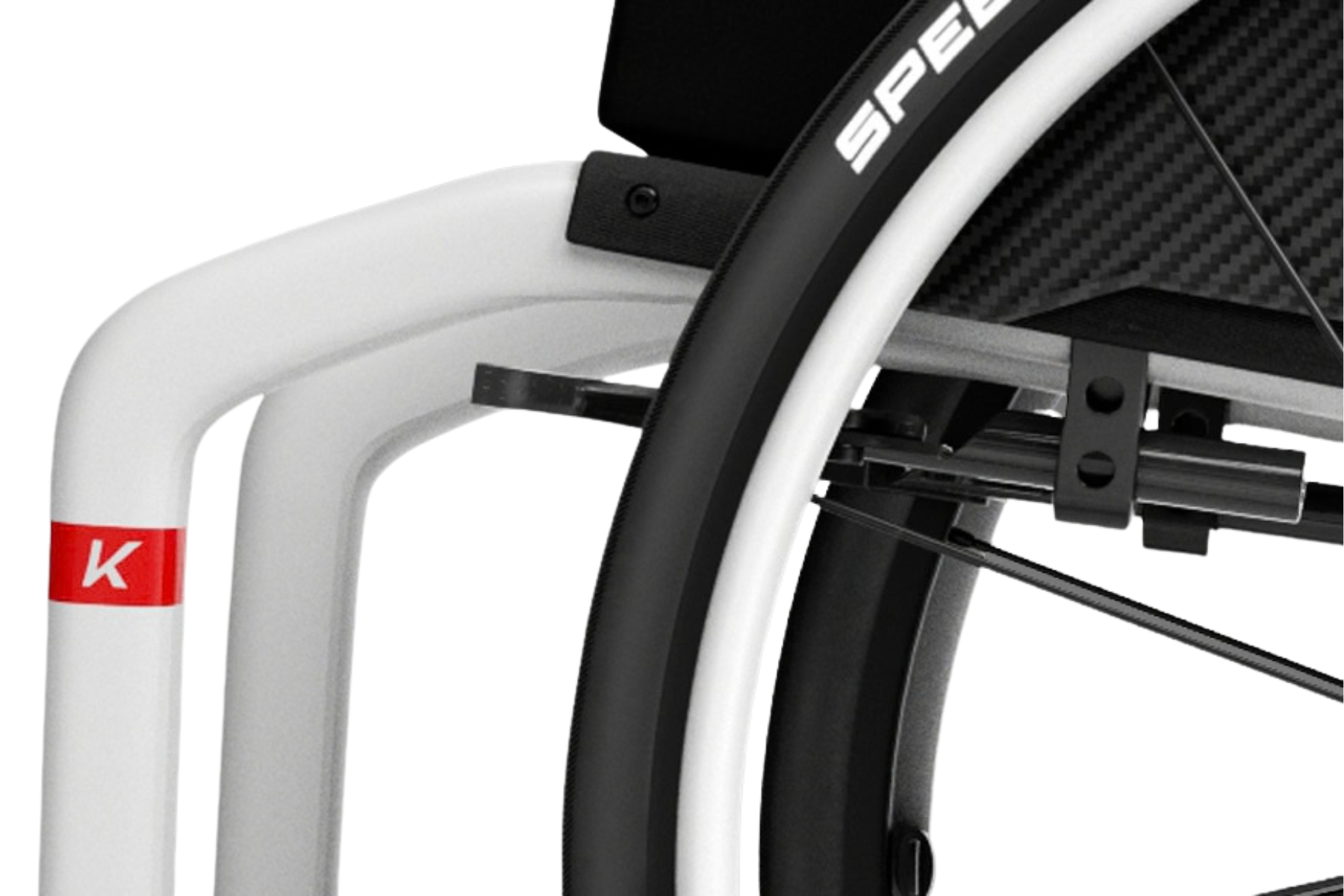

The optional fully welded frame creates a continuous box frame from front to back, increasing rigidity and responsiveness while incorporating an integrated grab bar for easier handling during transfers and transport. Alternatively, the adjustable centre of gravity option allows the rear wheel position to be fine-tuned as mobility needs or driving preferences change.
Clean lines, minimal styling and extensive customisation options make The KSL a practical choice for active everyday use without compromising performance.
The KSL is available in a wide range of sizes and can be customised with a choice of frame colours and decal designs to create a wheelchair that reflects individual preferences. (Additional lead time may apply for some designs.)
Who it’s for
- For experienced active wheelchair clients seeking an ultra-lightweight rigid wheelchair with responsive handling and precise setup.
- For therapists wanting a premium configurable rigid wheelchair that maximises propulsion efficiency and performance.
Download product fact sheet:
Key features
Description
- Ultra-lightweight rigid frame – promotes efficient propulsion and agile everyday performance
- Precision frame geometry – provides responsive handling and a highly personalised fit
- Optional fully welded frame – increases rigidity and incorporates an integrated grab bar for easier handling
- Optional adjustable centre of gravity – fine-tunes balance and driving characteristics as needs change
- Rigid frame design – transfers propulsion energy efficiently for a more responsive ride
- Extensive configuration options – supports individual seating, positioning and mobility requirements
- Custom frame colours and decals – personalise the wheelchair with a choice of frame finishes and graphic designs
Specifications
| Specification | Details |
|---|---|
| Safe Working Load (SWL) | 100 kg |
| Base Width | Seat Width + 170 mm |
| Base Length | 75°: approx. 800 mm 90°: approx. 730 mm |
| Seat Width | 34 cm – 44 cm (13.4” – 17.3”) |
| Seat Depth | 38.5 cm – 48.5 cm (15.2” – 19.1”) |
| Front Seat Height | 45 cm – 53 cm (17.7” – 20.9”) |
| Rear Seat Height | 40 cm – 48 cm (15.7” – 18.9”) |
| Backrest Height | 27 cm – 42 cm (10.6” – 16.5”) |
| Backrest Angle | 74°, 78°, 82°, 86°, 90° |
| Frame Angle | 75° or 90° (V-frame or tapered) |
| Centre Of Gravity | 8 cm, 9.5 cm, 11 cm, 12.5 cm, 14 cm (3.1”, 3.7”, 4.3”, 4.9”, 5.5”) |
| Camber | 0°, 3° or 6° |
| Front Castor | 3” / 4” / 5” |
| Rear Wheel | 24” / 25” |
| Frame Material | Aluminium |
| Total Weight | Approx. 6.8 kg |
| Transport Weight (Excl. Rear Wheels) | Approx. 4.3 kg |
| Warranty | Frame: 5 Years Components: 2 Years |
| Standard | AS/NZS 3695.1 |
| Transit Options | No |
| ARTG Certificate | 129939 |
| Compatible With Power Assist | Yes |
