Oxford Advance Compact Portable Hoist

In stock

$4,999.99

3 in stock

Purchase this product now and earn 5,000 Points!
Overview:

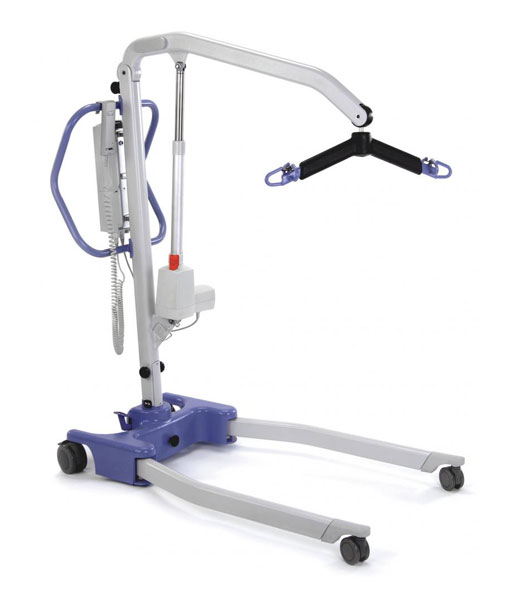

The Oxford Advance Floor Hoist is a highly functional patient lift. The Oxford Advance is a compact design that allows for easy transportation and storage. The Oxford Advance folding mobile patient hoist is one of the most functional and stylish in its class today. Especially suited to home care and small nursing institutions where space sometimes is simply not available, the Advance also allows a user to travel outside of the confines of their own home. Compact folding design for easy transportation and storage. This floor hoist comes with a Smart Monitor diagnostic and service controls as standard. The Ergonomic design considerations and interaction points. The ‘Swan-neck’ leg design ensures excellent access around furniture with an optional shallow 4-point positioning cradle.

You may also like…

Overview:
The Oxford Advance Floor Hoist is a highly functional patient lift. The Oxford Advance is a compact design that allows for easy transportation and storage. The Oxford Advance folding mobile patient hoist is one of the most functional and stylish in its class today. Especially suited to home care and small nursing institutions where space sometimes is simply not available, the Advance also allows a user to travel outside of the confines of their own home. Compact folding design for easy transportation and storage. This floor hoist comes with a Smart Monitor diagnostic and service controls as standard. The Ergonomic design considerations and interaction points. The ‘Swan-neck’ leg design ensures excellent access around furniture with an optional shallow 4-point positioning cradle.

Description

Exceptionally Versatile

The Advance also has truly outstanding performance. The moment you move or operate the Advance you are assured that every little detail has been considered during its meticulous design. Furthermore, the Advance lends itself to those environments where space and storage are at a premium. It is especially useful in home settings and small nursing institutions, where space sometimes is simply not available. The Advance’s incredible lifting range ensures it can cope easily with the most critical of transfers. Examples include:

  • Chair to chair transfers
  • Bed to chair transfers
  • Floor to chair transfers
  • Chair to bath transfers

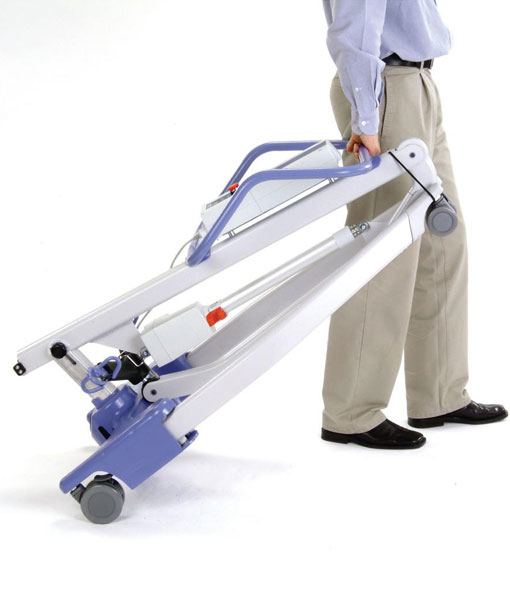

Compact Folding System

Unlike other products on the market, the Advance needs NO tools or special attachments to achieve its compact folded position. This functionality gives active users the option to travel outside the confines of their own home. Triangular folded design: This useful feature ensures two very important functions. (1) The lift stands unaided when being stored or transported. (2) The lift can be left safely in the knowledge that it will not become unstable whilst not in use



Smart™ Monitor

The Smart™ Monitor control system records the exact amount of work completed by the actuator each and every time the lift is used, regardless of a patient’s weight or lift height covered. The intelligent system advises the user to schedule key maintenance helping to ensure your lift remains in optimum condition.

  • Identifies total lift actuations and work completed n Identifies lift overloads (exceeding SWL)
  • Identifies service interval periods
  • Increases patient safety and product service life



Features Include :

  • Data collection in the control box with data display via LCD screen
  • Work counter
  • Intelligent cycle counter
  • Service indicator
  • Service interval indicator
  • Overload information
  • 3-step battery indicator

Additional information

Length

1300 mm

Maximum Height

1860 mm

Minimum Height

1360 mm

Height (Folded)

450 mm

Depth (Folded)

1180 mm

Width

550 mm

Height at Maximum Reach

1170 mm

Reach at Maximum Height

650 mm

Reach at Minimum Height

350 mm

Turning Radius

1420 mm

Legs Open (External Width)

1080 mm

Legs Open (Internal Width)

1000 mm

Legs Closed (External Width)

670 mm

Legs Closed (Internal Width)

570 mm

Overall Height of Legs

115 mm

Front Castor

75 mm

Rear Braked Castor

100 mm

Maximum Weight Capacity

155 kg

Oxford Advance Compact Portable Hoist Brochure

Oxford Advance Compact Portable Hoist User Manual
